2023 BiXS

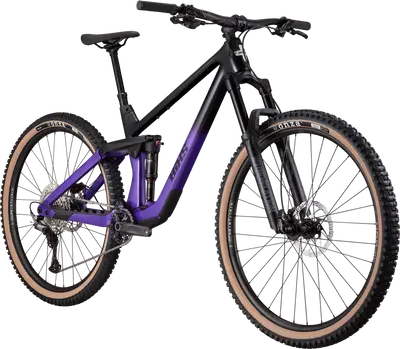

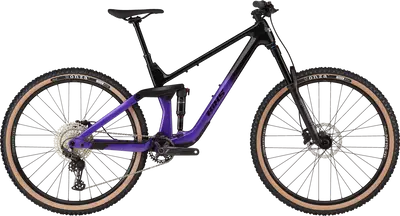

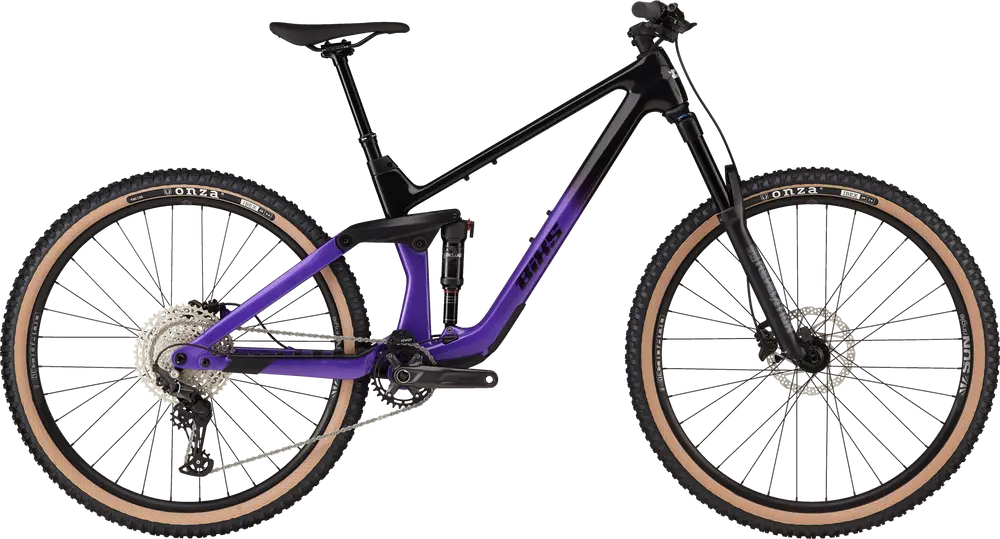

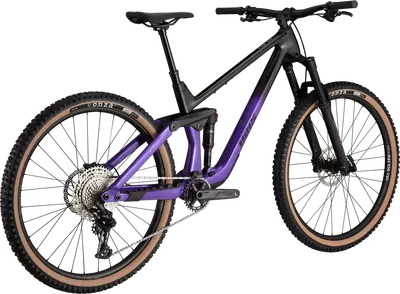

PEAK 340

A 29″ carbon frame full suspension trail bike with upper mid-range components.
Compare the full range

Manufacturer Price

CHF 4,090($5,215)
FrameCarbon
SuspensionFull, 140 / 150mm
ForkRockShox Revelation RC
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetDeore
BrakesShimano Deore Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

PEAK 340

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Peak model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

TRAIL GEOMETRY, FULL CARBON FRAME, 140MM TRAVEL, DROPOUT 148X12MM BOOST, 29"

Fork

ROCK SHOX REVELATION RC, 15X110MM AXLE, TAPERED, 150MM TRAVEL, REBOUND, COMPRESSION TO LOCK

Travel: 150mm

Spring Type: Air

Shock

140mm

Travel: 140mm

Stem

BIXS 0°ANGLE, 35mm CLAMP

Handlebar

BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm

Saddle

BiXS VL-1831

Seatpost

KIND SHOCK RAGE- I, S: 100MM, M: 125MM, L: 150MM, XL: 170MM TRAVEL, SHIMANO REMOTE, 31.6MM

Type: Dropper

Groupset
Rear Derailleur

SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED

Crank

SHIMANO FC-MT512, 2-PIECE CRANKSET, S: 30 THEETH, OTHERS 32 TEETH

Shifters

SHIMANO DEORE SL-M6100, CLAMP TYPE

Cassette

SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED

Chain

SHIMANO CN-M6100 12-SPEED

Brakes

SHIMANO BR-MT500, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS

Type: Shimano Deore Hydraulic Disc

Brake Levers

SHIMANO BL-MT501

Wheels
Rims

SUNRINGLE WHEELSET DUROC 30 COMP, TLR, 32 HOLES, INNER WIDTH 27mm, 29"

Front Hub

SUNRINGLE WHEELSET DUROC 30 COMP, 32 HOLES, 15x110mm THRU AXLE

Rear Hub

SUNRINGLE WHEELSET DUROC 30 COMP, 32 HOLES, 12x148mm BOOST, THRU AXLE

Tires

ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29X2.4"
