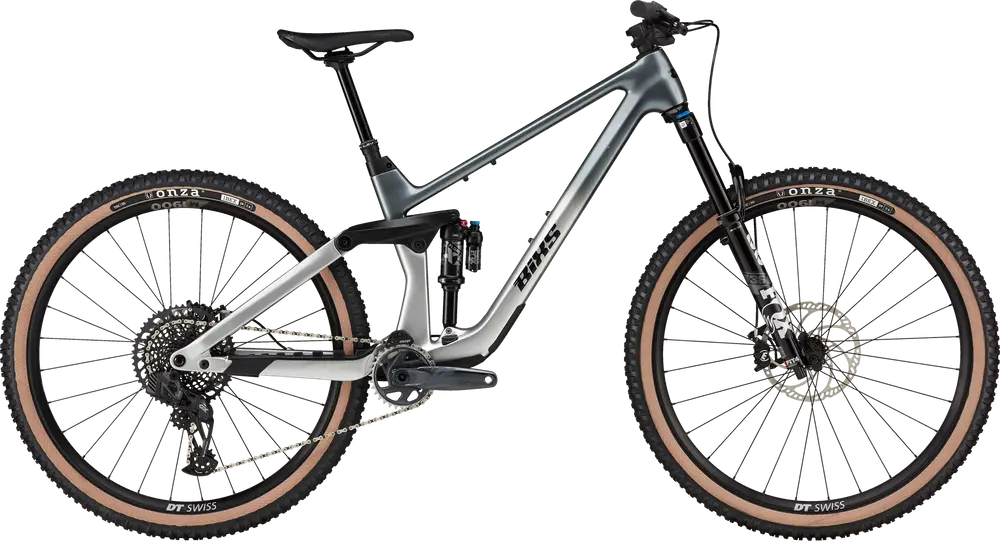

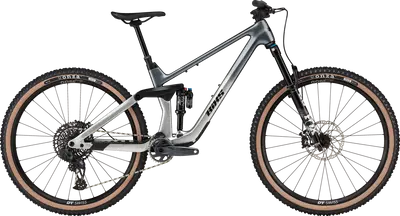

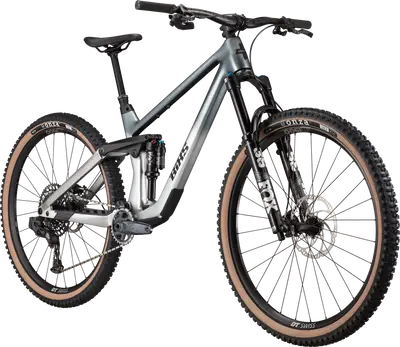

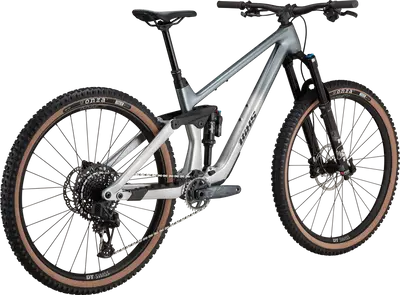

2023 BiXS

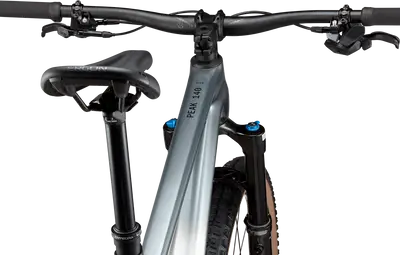

PEAK 140

A 29″ carbon frame full suspension trail bike with high-end components.
Compare the full range

Manufacturer Price

CHF 6,990($8,913)
FrameCarbon
SuspensionFull, 140 / 150mm
ForkFox Performance Elite Float 36
Wheels29″ Aluminum
Drivetrain1 × 12 Electronic
GroupsetGX Eagle AXS
BrakesMagura MT5 Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

PEAK 140

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Peak model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

TRAIL GEOMETRY, FULL CARBON FRAME, 140MM TRAVEL, DROPOUT 148X12MM BOOST, 29"

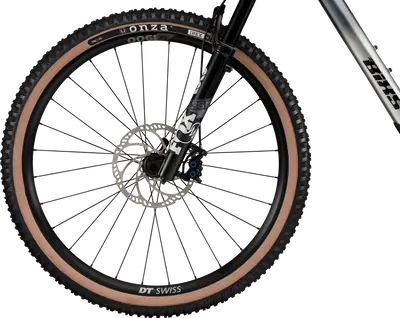

Fork

FOX 36 FLOAT PERFORMANCE ELITE, 15x110mm AXLE, TAPERED, FIT4, TRAVEL: 150mm, 3-POS. LEVER

Travel: 150mm

Spring Type: Air

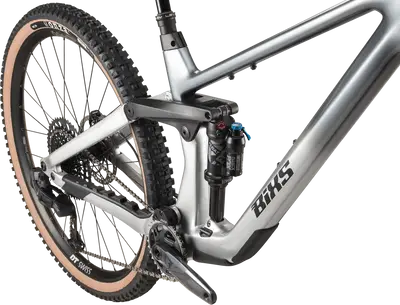

Shock

140mm

Travel: 140mm

Stem

RACE FACE AEFFECT R, 0°ANGLE, 35MM CLAMP

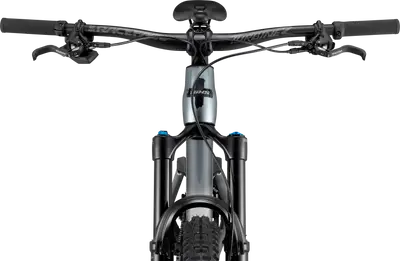

Handlebar

RACE FACE TURBINE R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm

Saddle

ERGON SM10 SPORT MAN

Seatpost

KIND SHOCK LEV INTEGRA, S: 100MM, M: 125MM, L: 150MM, XL: 175MM TRAVEL, SHIMANO REMOTE, 31.6MM

Type: Dropper

Groupset
Rear Derailleur

SRAM GX EAGLE AXS, 12-SPEED

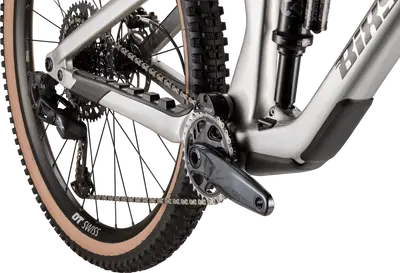

Crank

SRAM GX EAGLE BOOST, DUB, S: 30 THEETH, OTHERS 32 TEETH

Shifters

SRAM EC GX CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED

Cassette

SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK

Chain

SRAM CN-GX EAGLE

Brakes

MAGURA MT5, 4-PISTON HYDRAULIC DISC BRAKE, ROTORS F:203MM, R:180MM

Type: Magura MT5 Hydraulic Disc

Brake Levers

MAGURA MT5, 1-FINGER HC ALUMINUM LEVER BLADE

Wheels
Rims

DT SWISS WHEELSET SPLINE M-1900 TLR, 28 HOLES, INNER WIDTH 30mm, 29"

Front Hub

DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 15x110mm THRU AXLE

Rear Hub

DT SWISS WHEELSET SPLINE M-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE

Tires

ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29X2.4"
