2023 BiXS

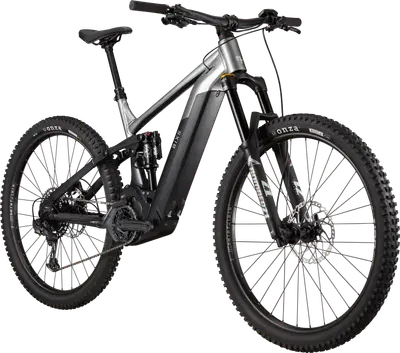

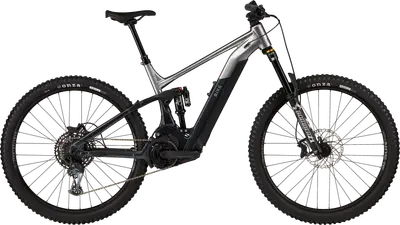

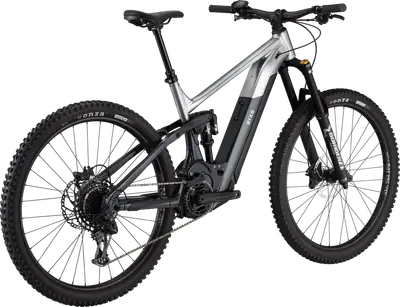

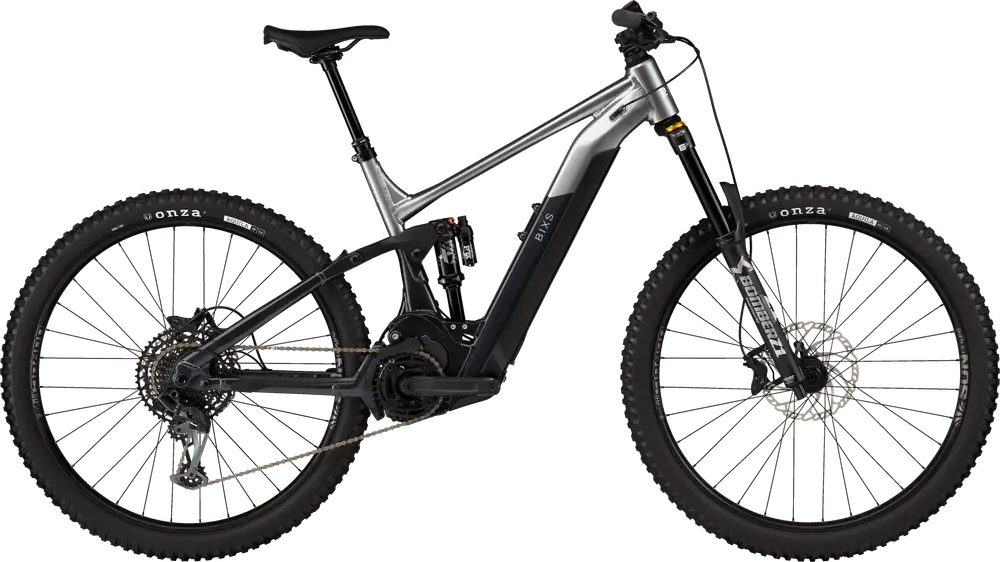

LANE-E26

A 29″ aluminum frame full suspension enduro e-bike with high-end components.

Manufacturer Price

CHF 6,590($8,403)
FrameAluminum
SuspensionFull, 160 / 170mm
ForkMarzocchi Bomber Z1
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetEX1, GX Eagle
MotorYamaha 250W mid-drive
Battery630Wh
BrakesShimano Deore Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

LANE-E26

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry
Specs
Build
Frame

E-ENDURO GEOMETRY, ALLOY 6061, 160MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29"

Fork

MARZOCCHI Z1 AIR, 15X110MM AXLE, TAPERED, GRIP, TRAVEL: 170MM, SWEEP ADJ.

Travel: 170mm

Spring Type: Air

Shock

160mm

Travel: 160mm

Stem

BIXS 0°ANGLE, 35mm CLAMP

Handlebar

BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm

Saddle

BIXS VL-3575

Seatpost

KIND SHOCK RAGEI, S: 100MM, M: 125MM, L: 150MM, XL: 170MM TRAVEL, WESTY LEVER REMOTE, 31.6MM

Type: Dropper

Groupset
Rear Derailleur

SRAM GX EAGLE, 12-SPEED

Crank

SRAM EX1 EAGLE X-Sync, 34 TEETH

Shifters

SRAM SL NX EAGLE SINGLE CLICK TRIGGER 12-SPEED

Cassette

SRAM PG-1210 EAGLE, 11-50 TEETH, 12-SPEED

Chain

SRAM CN-SX EAGLE

Brakes

SHIMANO BR-M6120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS

Type: Shimano Deore Hydraulic Disc

Brake Levers

SHIMANO BL-M6100

Wheels
Rims

SUNRINGLE WHEELSET DUROC 37SD COMP, TLR, 32 HOLES, INNER WIDTH 32mm, 29"

Front Hub

SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 15x110mm THRU AXLE

Rear Hub

SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 12X148MM BOOST, THRU AXL

Tires

ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29X2.5", GRC

Electric Components
Motor

YAMAHA PW-X 3 SERIES, 250 WATT

Battery

SIMPLO, 36V, 630Wh

Display

YAMAHA Display A
