2023 BiXS

LANE-E16

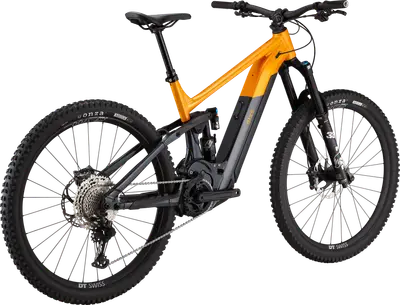

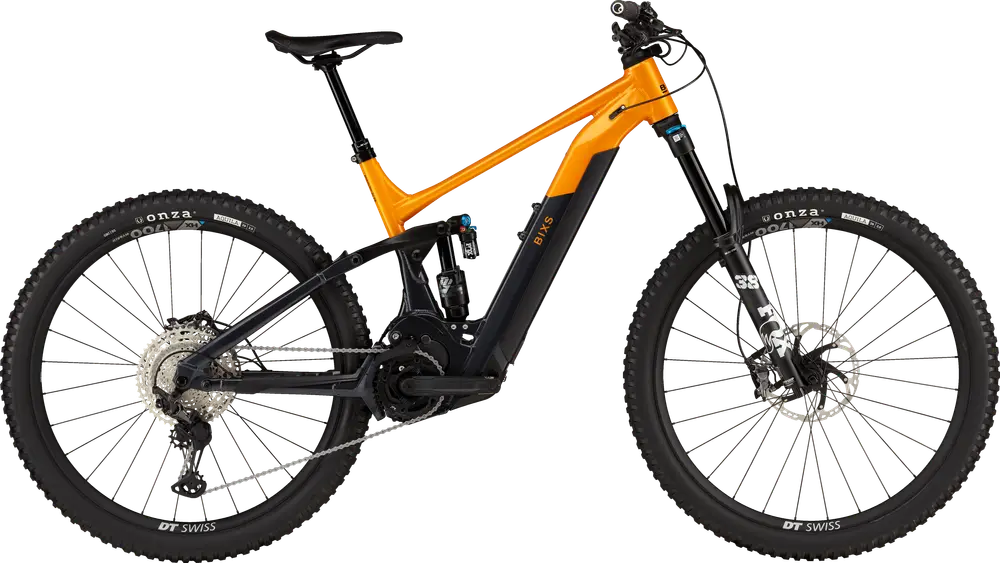

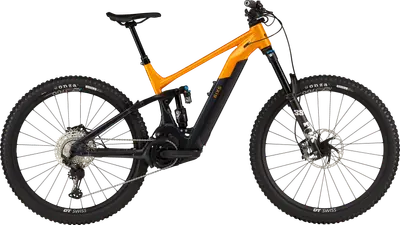

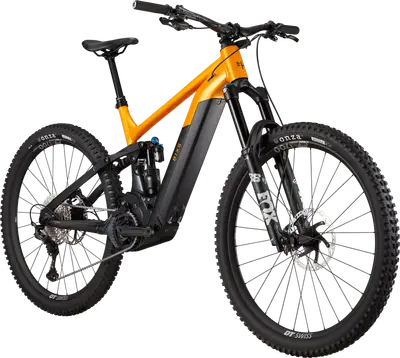

A 29″ aluminum frame full suspension enduro e-bike with high-end components.

Manufacturer Price

CHF 7,690($9,806)
FrameAluminum
SuspensionFull, 160 / 170mm
ForkFox Performance Float 38
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT
MotorYamaha 250W mid-drive
Battery630Wh
BrakesShimano XT Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

LANE-E16

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Geometry
Specs
Build
Frame

E-ENDURO GEOMETRY, ALLOY 6061, 160MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29"

Fork

FOX 38 FLOAT PERFORMANCE, 15X110MM AXLE, TAPERED, GRIP, TRAVEL: 170MM, 3-POS. LEVER

Travel: 170mm

Spring Type: Air

Shock

160mm

Travel: 160mm

Stem

RACE FACE TURBINE R, 0°ANGLE, 35mm CLAMP

Handlebar

RACE FACE TURBINE R, 780mm/800mm, 35mm RISE, 8° BACKSWEEP, 35mm

Saddle

ERGON SM10 E MOUNTAIN

Seatpost

KIND SHOCK LEV SI, S: 100MM, M: 125MM, L: 150MM, XL: 175MM TRAVEL, SHIMANO REMOTE LEVER, 31.6MM

Type: Dropper

Groupset
Rear Derailleur

SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED

Crank

FSA CK762 WIDER, ISIS, BOOST, STEEL CHAINRING, 34 TEETH

Shifters

SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV

Cassette

SRAM PG-1210 EAGLE, 11-50 TEETH, 12-SPEED

Chain

KMC E12 SPORT, EPT ANTI-RUST

Brakes

SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS

Type: Shimano XT Hydraulic Disc

Brake Levers

SHIMANO XT BL-M8100, ISPEC EV

Wheels
Rims

DT SWISS WHEELSET SPLINE HX 1700 TLR, INNER WIDTH 30MM, 29"

Front Hub

DT SWISS WHEELSET SPLINE HX-1700, 15X110MM THRU AXLE

Rear Hub

DT SWISS WHEELSET SPLINE HX-1700, 12X148MM BOOST, THRU AXLE

Tires

ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29X2.5", GRC

Electric Components
Motor

YAMAHA PW-X 3 SERIES, 250 WATT

Battery

SIMPLO, 36V, 630Wh

Display

YAMAHA Display X

Rider Notes
Riders Also Viewed

First added April 17

Last updated March 16

Not listed for 797 days
