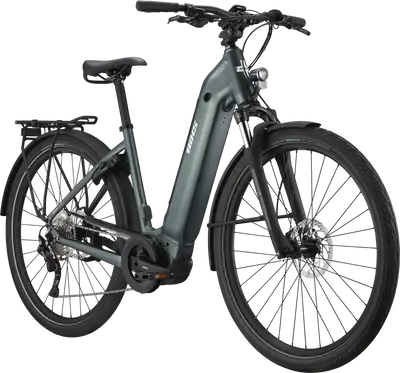

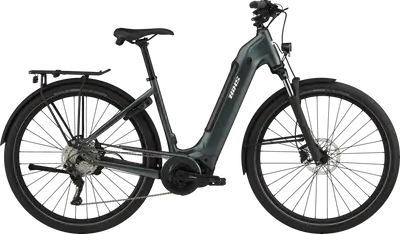

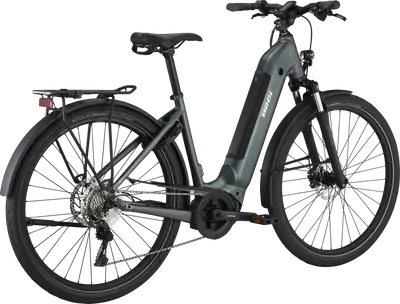

2023 BiXS

CAMPUS-E40 DI

A 700c aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

CHF 3,590($4,578)
FrameAluminum
SuspensionHardtail, 75mm
ForkSuntour NVX
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorShimano 250W 60Nm mid-drive
Battery500Wh
BrakesShimano Hydraulic Disc
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

CAMPUS-E40 DI

31 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Campus-E40 model range

View Comparison
Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eTOURING CONCEPT, ALLOY 6061, 700C

BB Standard: STEPS, Press Fit

Fork

SUNTOUR NVX30, 700C, TAPERED, QR, 75MM TRAVEL

Travel: 75mm

Spring Type: Coil

Bottom Bracket

STEPS, press-fit

Stem

BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP

Handlebar

BIXS HB-RB12L RIZER BAR, 720mm, 15°ANGLE, 15mm RISE, 31.8mm

Saddle

BIXS VL-3534

Seatpost

BIXS SP-3D2, 48cm: 350mm, OTHERS: 400mm, 31.6mm

Type: Rigid

Pedals

VP 836

Groupset
Rear Derailleur

SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED

Crank

SHIMANO STEPS FC-E6100, 38 TEETH

Shifters

SHIMANO DEORE SL-M4100, WITH OPTICAL GEAR DISPLAY

Cassette

SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED

Chain

SHIMANO CN-HG54

Brakes

SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS

Type: Shimano Hydraulic Disc

Brake Levers

SHIMANO BL-MT201

Wheels
Rims

ALEXRIMS DM-21, 32 HOLES, INNER WIDTH 21mm, 700C

Front Hub

SHIMANO HB-RM35, 32 HOLES, QR

Rear Hub

SHIMANO FH-RM35, 32 HOLES, QR

Tires

SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700X55C

Electric Components
Motor

SHIMANO STEPS DU-E6100, 250 WATT

Battery

DARFON, 36V, 500Wh

Display

SHIMANO SC-E6100

Accessories
Lights

HERRMANS INTEGRATED REAR LIGHT ON CARRIER

Fenders

BIXS ALLOY FENDER, 62mm WIDE, 700C

Racks

MASSLOAD BIXS CUSTOM WITH INTEGRATED REAR LIGHT
