2023 BiXS

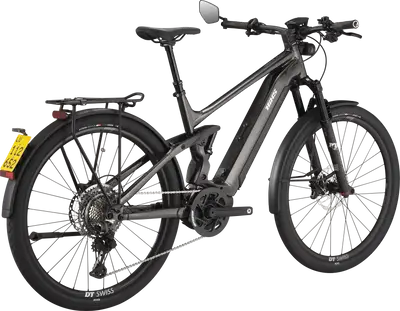

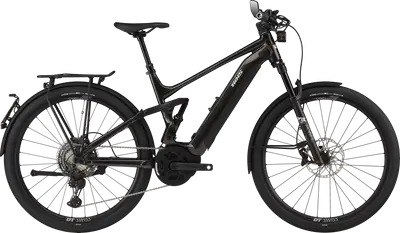

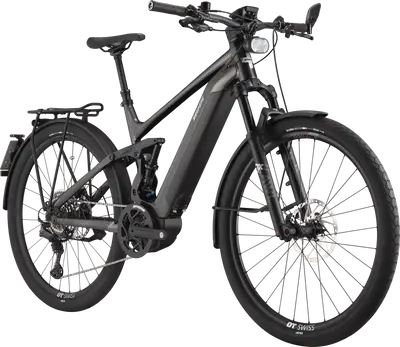

ACCESS-EX FS

A 29″ aluminum frame full suspension trail e-bike with high-end components.
Compare the full range

Manufacturer Price

CHF 6,790($8,658)
FrameAluminum
SuspensionFull, 130 / 120mm
ForkFox AWL
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetXT
MotorYamaha 500W mid-drive
Battery630Wh
BrakesShimano Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

ACCESS-EX FS

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

E-TOURING SUV, ALLOY 6061, 29" Boost

Fork

FOX 34 FLOAT AWL 29" E-SUV, 15X110MM AXLE, TAPERED, TRAVEL: 120MM, SWEEP ADJUST LEVE

Travel: 120mm

Spring Type: Air

Shock

130mm

Travel: 130mm

Stem

FSA, CABLE INTEGRATION STEM, NS ICR, 50MM, 31.8MM Clamp

Handlebar

BIXS HB-RB12W RIZER BAR, 760mm, 9°ANGLE, 25mm RISE, 31.8mm

Saddle

ERGON SFC30 GEL

Seatpost

KIND SHOCK RAGEI, M & L: 125MM, XL: 150MM TRAVEL, KSGL-ALLOY REMOTE LEVER, 31.6MM

Type: Dropper

Groupset
Rear Derailleur

SHIMANO XT RD-M8130 SGS SHADOW PLUS DESIGN, 11-SPEED

Crank

FSA CK-320/ISIS, 42 TEETH

Shifters

SHIMANO XT SL-M8130, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV

Cassette

SHIMANO CS-LG600, 11-50 THEETH, 11-SPEED

Chain

SHIMANO CN-LG500 11-SPEED

Brakes

SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:180mm ROTORS

Type: Shimano Hydraulic Disc

Brake Levers

SHIMANO BL-M4100, ISPEC EV

Wheels
Rims

DT SWISS WHEELSET SUV HU-1900 TLR, 28 HOLES, INNER WIDTH 25MM, 29"

Front Hub

DT SWISS WHEELSET SUV HU-1900, 28 HOLES, 15X110MM THRU AXLE

Rear Hub

DT SWISS WHEELSET SUV HU-1900, 28 HOLES, 12X148MM BOOST, THRU AXL

Tires

ONZA ALLEGRA, 29X2.25"

Electric Components
Motor

YAMAHA PW-X 2 45 SERIES, 500 WATT

Battery

SIMPLO, 36V, 630Wh

Display

YAMAHA Display C

Accessories
Lights

SUPERNOVA Q-UL1EK, SPEED PEDELEC TAILLIGHT, 12V

Fenders

WINGEE, BiXS CUSTOM, 62mm, 29", ALLOY

Racks

RACKTIME BOOST IT
