Today’s Deals2026 Bianchi

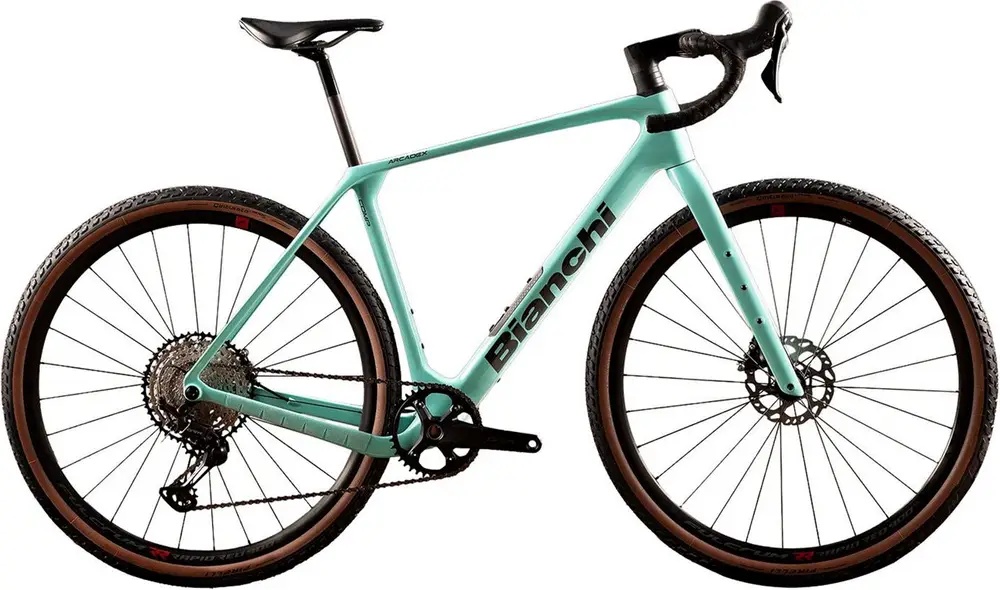

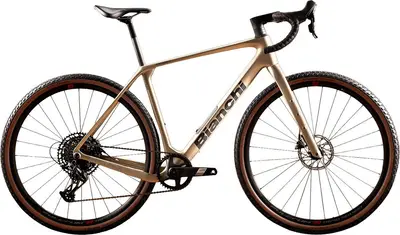

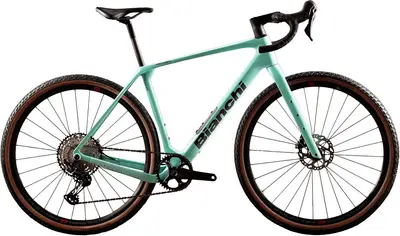

Arcadex COMP APEX EAGLE D1
A carbon frame gravel bike with upper mid-range components and sram apex hydraulic disc brakes.
Compare the full range
Manufacturer Price
£2,790($3,754)| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 Electronic |
| Groupset | Apex AXS |
| Brakes | SRAM Apex Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
Oct 2025 · Jack Evans
Bianchi has launched the Arcadex AL, a 'premium aluminium' gravel bike seeking to closely replicate the look and weight of
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
| Frame | Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: SRAM UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL BB Standard: BB86/BB92, 86.5mm, Press Fit Hanger Standard: UDH Colors: Az - Metal Sand / Graphite Glossy; Ay - Ck16 / Graphite Glossy |
|---|---|
| Fork | Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm |
| Bottom Bracket | SRAM Press fit Road Wide 86.5x41 |
| Headset | Acros for internal cable routing |
| Stem | Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 80mm (XS-47) (SM-51), 90mm(MD-55), 100mm(LG-58),110mm(XL-61) |
| Handlebar | Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL) |
| Saddle | Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm |
| Seatpost | Velomann Carbon, offset 15 mm, diameter 27.2 mm length: 300 mm (XS); 350 mm (SM-XL) Type: Rigid |
| Rear Derailleur | SRAM Apex Eagle D1, 12sp |
|---|---|
| Crank | SRAM Apex D1 Wide, 40T Crank length: 170 mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL) |
| Shifters | SRAM Apex AXS, D1 |
| Cassette | SRAM PG-1210 Eagle, for HG body, 11-13-15-17-19-22-25-28-32-36-42-50T |
| Chain | SRAM SX Eagle, 12 sp |
| Brakes | SRAM Apex, Hydraulic disc brake Type: SRAM Apex Hydraulic Disc |
| Brake Levers | Included in the shifter |
| Rims | Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body |
|---|---|
| Tires | Pirelli Cinturato Gravel M, 700x45, 120 TPI |
| Disc Rotors | SRAM Centerline, Center Lock, 160 mm |
First added December 27
Last updated May 16
