Today’s Deals2025 Bianchi
Arcadex GRX 600
A carbon frame gravel bike with upper mid-range components and shimano grx 400 hydraulic disc brakes.
Compare the full range
Manufacturer Price
£2,399($3,228)| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | GRX 800, GRX 600 |
| Brakes | Shimano GRX 400 Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2025 · Jack Evans
Bianchi has launched the Arcadex AL, a 'premium aluminium' gravel bike seeking to closely replicate the look and weight of
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.

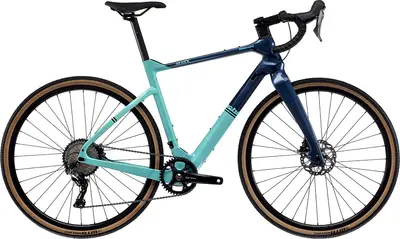

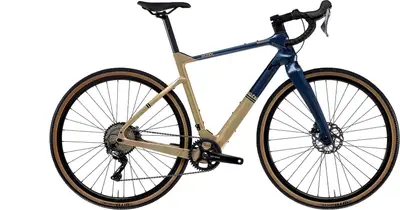

| Frame | Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition, sizes: XS-SM-MD-LG-XL BB Standard: BB86/BB92, Press Fit Colors: Gx - Celeste Ck16 / Blue Note Glossy; Gy - Gold Storm / Blue Note Glossy |
|---|---|
| Fork | Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm |
| Bottom Bracket | Shimano BB-RS500-PB, press fit |
| Headset | FSA SMR HS with 1.1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061, 1 1/4", rise 0°, Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL |
| Saddle | Reparto Corse 2315HRN, rail steel black, open, cover PU, lenght/wide 250x148mm |
| Seatpost | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm-XS, 350mm-S/M/L/XL Type: Rigid |
| Rear Derailleur | Shimano GRX RD-RX812 11sp |
|---|---|
| Crank | Shimano GRX 600 FC-RX600 40T, Crank Length: 170mm-XS-SM, 172.5mm-MD-LG, 175mm-XL |
| Shifters | Shimano GRX 600 ST-RX600 1x11sp |
| Chain | Kmc X11-1 EPT finish |
| Brakes | Shimano BR-RX400 Type: Shimano GRX 400 Hydraulic Disc |
| Brake Levers | included w/shifters |
| Rims | AlexRims GD24 disc 622-21, tubeless ready |
|---|---|
| Front Hub | Shimano HB-RS470 |
| Rear Hub | Shimano FH-RS470 |
| Tires | WTB Riddler Comp 700x37 |
| Disc Rotors | Shimano SM-RT70, diam. 160mm |
