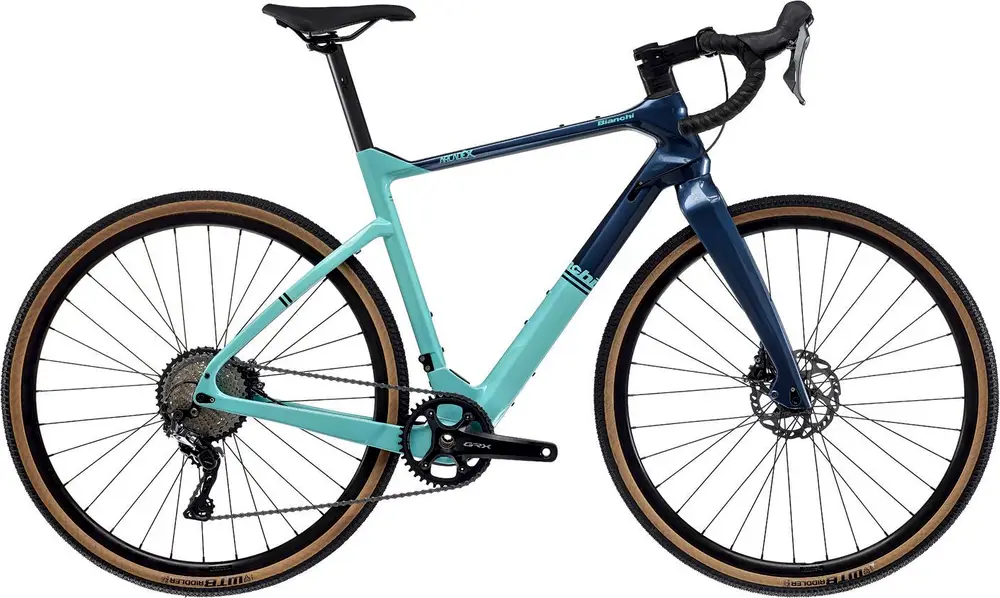

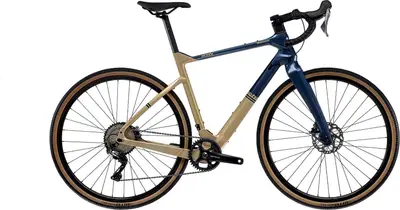

Today’s Deals2025 Bianchi
Arcadex GRX
A carbon frame gravel bike with high-end components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
£2,649($3,564)| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GRX 800 |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2025 · Jack Evans
Bianchi has launched the Arcadex AL, a 'premium aluminium' gravel bike seeking to closely replicate the look and weight of
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
| Frame | Arcadex carbon, seat post 31.6mm, thru axle 12x142mm, flat mount disc, pressfit 41, compatible with 42mm tire and mudguard. Sizes: XS-S-M-L-XL BB Standard: BB86/BB92, Press Fit Colors: Gx - Celeste Ck16 / Blue Note Glossy; Gy - Gold Storm / Blue Note Glossy |
|---|---|
| Fork | Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm |
| Bottom Bracket | Shimano, SM-BB72-41B, press fit for road |
| Headset | FSA SMR HS with 1-1/8” custom top cone Bianchi |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061, raise 0°, Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aero shape, Aluminum 6061, reach 70mm, flare angle 16°, drop cc 130mm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL |
| Saddle | Reparto Corse, rail steel, lenght/wide 250x148mm |
| Seatpost | Reparto Corse carbon shaft UD finish, forged alloy head, 15mm offset, 31,6mm Length: 300mm-XS, 350mm-S/M/L/XL Type: Rigid |
| Rear Derailleur | Shimano GRX |
|---|---|
| Crank | Shimano, 40T, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL |
| Shifters | Shimano GRX Hydraulic disc brake, for 160mm rotor |
| Chain | Shimano, 105 12sp, CN-M7100 |
| Brakes | Shimano flat mount hydraulic disc brake, included in the shifter Type: Shimano Hydraulic Disc |
| Rims | Velomann alloy disc 700c 622-21, profile 27mm, Shimano RS470 hubs, 32hole, tubeless ready |
|---|---|
| Tires | WTB Resolute Comp 700 x 42c, 27tpi Casing |
| Disc Rotors | Shimano rotor for disc brake center lock, 160mm |
