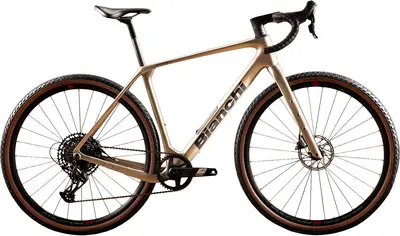

Today’s Deals2025 Bianchi
Arcadex Comp APEX disc
A gravel bike with mid-range components and sram apex hydraulic disc brakes.
Compare the full range
Manufacturer Price
£2,649($3,554)| Suspension | Rigid |
|---|---|
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Apex |
| Brakes | SRAM Apex Hydraulic Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
Oct 2025 · Jack Evans
Bianchi has launched the Arcadex AL, a 'premium aluminium' gravel bike seeking to closely replicate the look and weight of
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
| Frame | Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: BB Standard: BB86/BB92, 86.5mm, Press Fit Hanger Standard: UDH Colors: Ay; Az |
|---|---|
| Fork | Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite |
| Bottom Bracket | SRAM DUB PressFit Road Wide 86.5 X Ø41 |
| Headset | Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal |
| Stem | Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61) |
| Handlebar | Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61) |
| Saddle | Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm |
| Seatpost | Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61) Type: Rigid |
| Rear Derailleur | SRAM Apex Eagle Maximum Cassette Sprocket 52T |
|---|---|
| Crank | SRAM Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) |
| Shifters | SRAM Apex D1 |
| Cassette | SRAM SX Eagle, PG-1210 11-50T Driver Body Interface: HG11 |
| Chain | SRAM SX Eagle |
| Brakes | SRAM APEX Pad Type: Steel-Backed Organic Type: SRAM Apex Hydraulic Disc |
| Rims | Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm |
|---|---|
| Tires | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
| Disc Rotors | SRAM CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear) |
