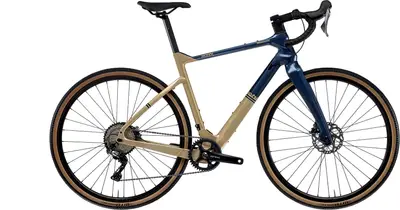

2024 Bianchi
Arcadex GRX 600
A carbon frame gravel bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
£2,399($3,038)| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | GRX 800, GRX 600 |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
Oct 2021 · Caley Fretz
Super efficient under power, but a brutally stiff ride, odd geometry and aesthetics, and some odd routing and spec choices.
Incredibly stiff.
Incredibly stiff, short fit, questionable looks, limited tire clearance.
Apr 2021 · David Kennedy
Euro gravel shootout
Mar 2021 · Matthew Loveridge
The Arcadex isn’t ultra comfy, but it’s a pleasure to ride on and off road, and it looks like nothing else
Unique looks
Road bike feel with gravel versatility
Firmer ride than some
No carbon seatpost
Fork eyelets not threaded
| Frame | Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition, sizes: XS-SM-MD-LG-XL BB Standard: BB86/BB92, Press Fit Colors: Gx - Celeste Ck16 / Blue Note Glossy; Gy - Gold Storm / Blue Note Glossy |
|---|---|
| Fork | Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm |
| Bottom Bracket | Shimano BB-RS500-PB, press fit |
| Headset | FSA SMR HS with 1.1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061, 1 1/4", rise 0°, Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL |
| Saddle | Reparto Corse 2315HRN, rail steel black, open, cover PU, lenght/wide 250x148mm |
| Seatpost | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm-XS, 350mm-S/M/L/XL Type: Rigid |
| Grips | La Spirale Ribbon cork |
| Rear Derailleur | Shimano GRX RD-RX812 11sp |
|---|---|
| Crank | Shimano GRX 600 FC-RX600 40T, Crank Length: 170mm-XS-SM, 172.5mm-MD-LG, 175mm-XL |
| Shifters | Shimano GRX 600 ST-RX600 1x11sp |
| Chain | Kmc X11-1 EPT finish |
| Brakes | Shimano BR-RX400 Type: Hydraulic Disc |
| Brake Levers | included w/shifters |
| Rims | AlexRims GD24 disc 622-21, tubeless ready |
|---|---|
| Front Hub | Shimano HB-RS470 |
| Rear Hub | Shimano FH-RS470 |
| Tires | WTB Riddler Comp 700x37 |
| Disc Rotors | Shimano SM-RT70, diam. 160mm |
Last updated June 29
