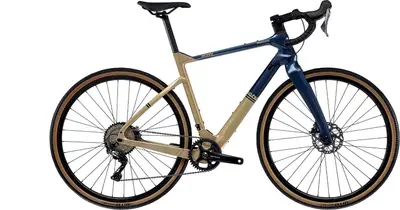

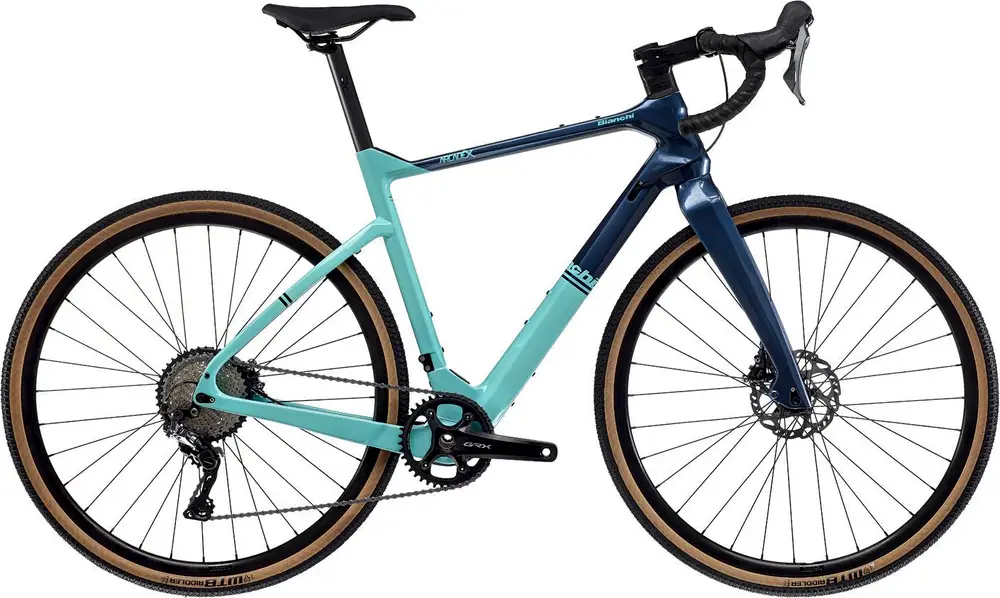

2024 Bianchi
Arcadex GRX
A carbon frame gravel bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
£2,399($3,038)| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Groupset | GRX 800, Shimano |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
Oct 2021 · Caley Fretz
Super efficient under power, but a brutally stiff ride, odd geometry and aesthetics, and some odd routing and spec choices.
Incredibly stiff.
Incredibly stiff, short fit, questionable looks, limited tire clearance.
Apr 2021 · David Kennedy
Euro gravel shootout
Mar 2021 · Matthew Loveridge
The Arcadex isn’t ultra comfy, but it’s a pleasure to ride on and off road, and it looks like nothing else
Unique looks
Road bike feel with gravel versatility
Firmer ride than some
No carbon seatpost
Fork eyelets not threaded
| Frame | Arcadex carbon, seat post 31.6mm, thru axle 12x142mm, flat mount disc, pressfit 41, compatible with 42mm tire and mudguard. Sizes: XS-S-M-L-XL BB Standard: BB86/BB92, Press Fit Colors: Gx - Celeste Ck16 / Blue Note Glossy; Gy - Gold Storm / Blue Note Glossy |
|---|---|
| Fork | Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm |
| Bottom Bracket | Shimano, BB-RS500-PB, press fit for road |
| Headset | FSA SMR HS with 1-1/8” custom top cone Bianchi |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061, raise 0°, Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aero shape, Aluminum 6061, reach 70mm, flare angle 16°, drop cc 130mm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL |
| Saddle | Reparto Corse, rail steel, lenght/wide 250x148mm |
| Seatpost | Reparto Corse alloy, forged alloy head, 15mm offset, 31,6mm Length: 300mm-XS, 350mm-S/M/L/XL Type: Rigid |
| Grips | Bianchi cork, black |
| Rear Derailleur | Shimano GRX |
|---|---|
| Crank | Shimano, 40T, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL |
| Shifters | Shimano GRX Hydraulic disc brake, for 160mm rotor |
| Chain | Shimano CN-M6100 |
| Brakes | Shimano flat mount hydraulic disc brake, included in the shifter Type: Hydraulic Disc |
| Rims | Velomann alloy disc 700c 622-21, profile 27mm, Shimano RS470 hubs, 32hole, tubeless ready |
|---|---|
| Tires | WTB Resolute Comp 700 x 42c, 27tpi Casing |
| Disc Rotors | Shimano rotor for disc brake center lock, 160mm |
Last updated June 29
