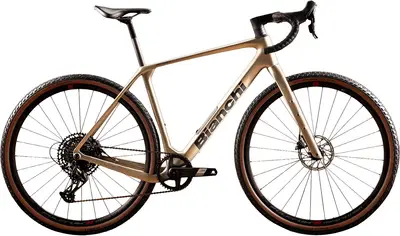

2024 Bianchi
Arcadex Comp APEX disc
A gravel bike with mid-range components and mechanical disc brakes.
Compare the full range
Manufacturer Price
£2,649($3,354)| Suspension | Rigid |
|---|---|
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Apex |
| Brakes | Mechanical Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
Oct 2021 · Caley Fretz
Super efficient under power, but a brutally stiff ride, odd geometry and aesthetics, and some odd routing and spec choices.
Incredibly stiff.
Incredibly stiff, short fit, questionable looks, limited tire clearance.
Apr 2021 · David Kennedy
Euro gravel shootout
Mar 2021 · Matthew Loveridge
The Arcadex isn’t ultra comfy, but it’s a pleasure to ride on and off road, and it looks like nothing else
Unique looks
Road bike feel with gravel versatility
Firmer ride than some
No carbon seatpost
Fork eyelets not threaded
| Frame | Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: BB Standard: BB86/BB92, 86.5mm, Press Fit Hanger Standard: UDH Colors: Ay; Az |
|---|---|
| Fork | Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite |
| Bottom Bracket | SRAM DUB PressFit Road Wide 86.5 X Ø41 |
| Headset | Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal |
| Stem | Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61) |
| Handlebar | Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61) |
| Saddle | Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm |
| Seatpost | Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61) Type: Rigid |
| Grips | Bianchi Hexagon tape 2.5mm thickness, Full black |
| Rear Derailleur | SRAM Apex Eagle Maximum Cassette Sprocket 52T |
|---|---|
| Crank | SRAM Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) |
| Shifters | SRAM Apex D1 |
| Cassette | SRAM SX Eagle, PG-1210 11-50T Driver Body Interface: HG11 |
| Chain | SRAM SX Eagle |
| Brakes | SRAM APEX Pad Type: Steel-Backed Organic Type: Mechanical Disc |
| Rims | Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm |
|---|---|
| Tires | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
| Disc Rotors | SRAM CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear) |
Last updated June 29
