Today’s Deals2023 Bianchi

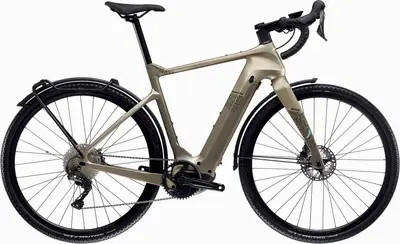

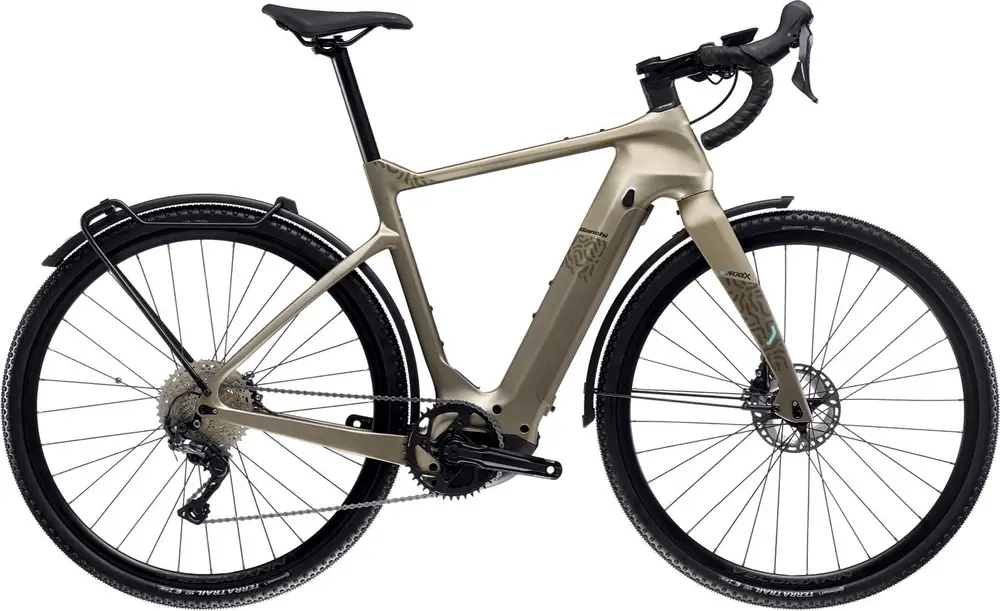

e-Arcadex Tourer Apex XPLR
A carbon frame gravel e-bike with upper mid-range components and sram hydraulic disc brakes.
Compare the full range
Manufacturer Price
£4,649($6,235)| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Apex XPLR |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | SRAM Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full e-Arcadex model range
View Comparison5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2020 · Cory Benson
All-new Bianchi Arcadex carbon gravel bike embraces fast gravel roads & off-road adventures, plus a hint of e-bike version coming soon...
| Frame | e-Arcadex Carbon sizes: 47, 51, 55, 58, 61 - 12x142 mm thru axle - Flat mount 140 disc brake type - Fender compatible Colors: Dx - Desert; 4s - Glacial |
|---|---|
| Fork | Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm |
| Bottom Bracket | Included in the Drive unit |
| Headset | FSA SMR HS with 1-1/8” |
| Stem | Velomann, Alloy 6061, 1 1/4", raise 0° Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Handlebar | Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm Size: 400mm-XS/S, 420mm-M/L, 440mm-XL |
| Saddle | Velomann, carbon steel rail, 262x145 |
| Seatpost | Velomann Alloy shaft, alloy head, 15mm offset, 31,6mm Length: 300mm/XS - SM ; L350mm/MD - LG -XL Type: Rigid |
| Grips | La Spirale Ribbon cork |
| Rear Derailleur | SRAM Apex XPLR |
|---|---|
| Crank | FSA E-bike Crankset / 165mm - 170mm - 175mm / Hollow Alloy FSA Alloy 42T |
| Shifters | SRAM Apex Disc Brake |
| Chain | SRAM Apex |
| Brakes | SRAM included in the shifter Type: SRAM Hydraulic Disc |
| Rims | Velomann, 23-622, profile 24,5mm, 32hole, tubeless ready |
|---|---|
| Front Hub | Formula CL-712 road disc, alloy 32h, center lock, J-bend, thru axle 12x100mm |
| Rear Hub | Formula RXC-142S road disc, center lock, J-bend, thru axle 12x142mm |
| Tires | Continental 40-622 Terra Trail |
| Disc Rotors | SRAM Paceline, Center lock, 160mm |
| Motor | Bosch Performance Line CX, 85Nm, Kiox display |
|---|---|
| Battery | Bosch Powertube 500Wh integrated battery |
| Lights | Front: Supernova Mini2 - 235 lumen - 4 W a 12 V, Rear: Integrated in the mudguard |
|---|---|
| Fenders | SKS A46 profile, integrated tail light XELTEC, 12V |
| Racks | SKS Infinity GT3 |
