Today’s Deals2023 Bianchi

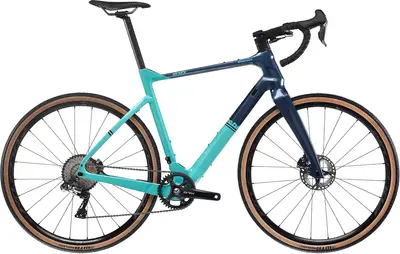

Arcadex - Rival 1
A gravel bike with upper mid-range components and mechanical disc brakes.
Compare the full range
Manufacturer Price
£3,249($4,371)| Suspension | Rigid |
|---|---|
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Rival |
| Brakes | Mechanical Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2024 · Cory Benson
2024 Bianchi Arcadex carbon gravel bike gets facelift, big tire clearance upgrade & internal frame storage - ready for bikepacking adventure!
Jun 2024 · Alvin Holbrook
The storied Italian bicycle manufacturer goes for the adventure gravel bike crowd with its new Bianchi Arcadex.
Oct 2021 · Caley Fretz
Super efficient under power, but a brutally stiff ride, odd geometry and aesthetics, and some odd routing and spec choices.
Incredibly stiff.
Incredibly stiff, short fit, questionable looks, limited tire clearance.
Apr 2021 · David Kennedy
Euro gravel shootout
Dec 2020 · Paul Norman
Bianchi says the Arcadex is designed to be fast whatever the conditions
| Bottom Bracket | SRAM Press fit Road 86,5x41 |
|---|---|
| Headset | FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB, compressor ring 1.1/8" |
| Stem | Reparto Corse, Alloy 6061, 1 1/4", raise 0°,Oversize, plastic adaptor for hose cover 1 1/4", finish black; Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL |
| Saddle | Fi'zi:k Argo Terra R5 150mm black wing flex, nylon carbon reinforced WingFlex, rail S alloy |
| Seatpost | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm/XS; 350mm/S-M-L-XL Type: Rigid |
| Grips | La Spirale Ribbon cork, color= Black |
| Rear Derailleur | SRAM RIVAL1 12sp Roller Bearing Clucth, X-Horizon, Aluminium Long Cage, MAX 44T |
|---|---|
| Crank | SRAM RIVAL 1 D1 DUB WIDE 40T 170 - 172,5 - 175, 46/33, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL |
| Shifters | SRAM RIVAL 1 Hydraulic Disc Brake |
| Cassette | SRAM CS XG 1251 D1 XPLR 10-44t: 10,11,13,15,17,19,21,24,28,32,38,44T |
| Chain | SRAM RIVAL D1 12S 116 LINK |
| Brakes | included in the shifter Type: Mechanical Disc |
| Rims | Fulcrum Rapid Red 900 DB 2WF-R C22 AFS, alloy, 2-Way fit Ready, rim profile 24mm, width 27,1mm, 28 spokes, HH12- rear HH12/142 N3W |
|---|---|
| Tires | WTB Riddler Race 700 x 37c, Dual DNA Compound, 60tpi Casing |
| Disc Rotors | SRAM Rotor centerlock centerline Road 160mm black rounded |
First added October 18
Last updated November 13
Not listed for 1,279 days
