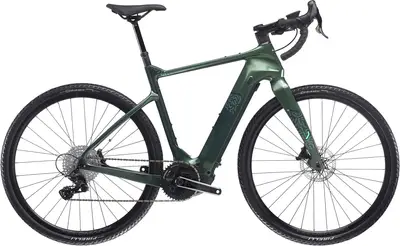

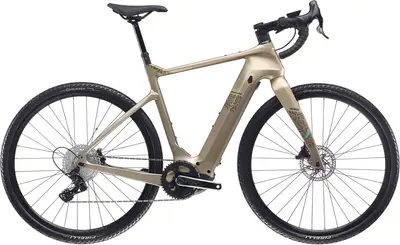

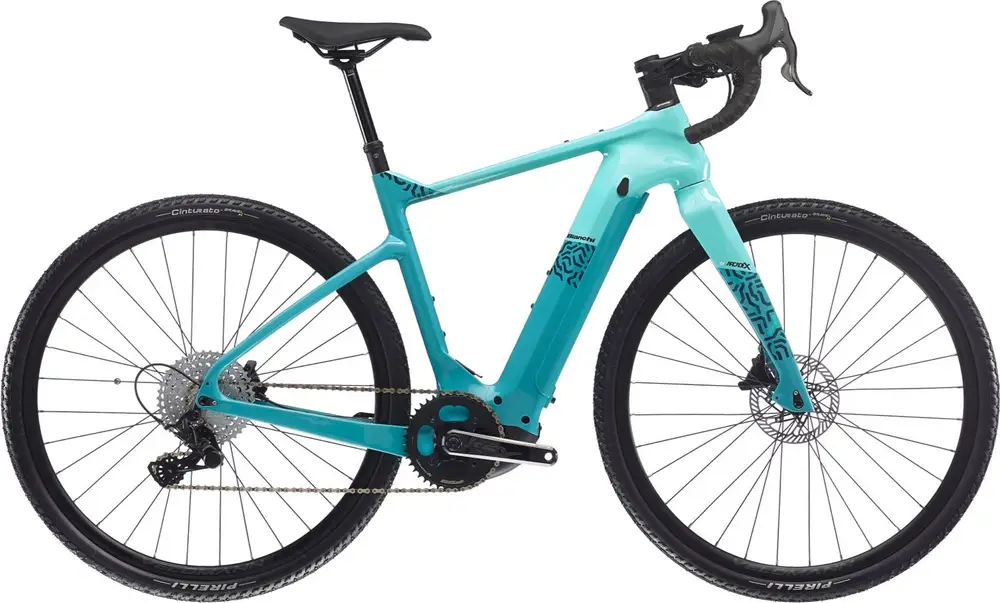

Today’s Deals2022 Bianchi
E-Arcadex - Ekar
A gravel e-bike with ultra high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$7,000| Suspension | Rigid |
|---|---|
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 13 |
| Groupset | Ekar |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
Dec 2020 · Cory Benson
All-new Bianchi Arcadex carbon gravel bike embraces fast gravel roads & off-road adventures, plus a hint of e-bike version coming soon...
| Fork | Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm |
|---|---|
| Bottom Bracket | Included in the Drive unit |
| Headset | FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475 Internal Headset, Integrated Alloy custom top cup 1.1/8"", 1.5"", 36°/45° ACB |
| Stem | Velomann, Alloy 6061, 1 1/4", raise 0°, Oversize, plastic adaptor for hose cover 1 1/4", Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL |
| Handlebar | Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120, Size: 400mm-XS/S, 420mm-M/L, 440mm-XL |
| Saddle | Velomann, rail steel black, open, cover PU, lenght/wide 250x148mm color: black |
| Seatpost | Alpha3 Series, 40+80, 31,6 mm, Anodized black, Gravel remote, 1800 mm Barrel + screw Type: Dropper |
| Grips | La Spirale Ribbon cork + new plug carbon look with Bianchi logo color: Black |
| Rear Derailleur | Campagnolo RD EKAR 1x13 |
|---|---|
| Crank | FSA E-bike KFX Crankset - ISIS / 165mm - 170mm - 175mm / Hollow Alloy / SB black FSA Bosch Gen4 STD Alloy Spider |
| Shifters | Campagnolo EP EKAR 1x13 - Ant. adapter + screws - Post. adapter + screws - Fixing screws 29mm |
| Chain | Campagnolo EKAR 13v C-Link 117 links w/quick-link |
| Brakes | included in the shifter Type: Hydraulic Disc |
| Brake Levers | included |
| Rims | Velomann Sport Disc, 23-622, profile 24,5mm, 32hole, tubeless ready |
|---|---|
| Rear Hub | TA 12x142, center lock, J-bend, N3W |
| Tires | Pirelli Cinturato GRAVEL Adventure M, 40-622, black, 60tpi, TLR, Foldable |
| Disc Rotors | Campagnolo AFS 160mm, steel spider |
| Motor | Bosch Performance Line CX motor unit |
|---|---|
| Battery | Bosch Powertube 500Wh integrated battery |
First added September 11
Last updated October 17
Not listed for 1,307 days
