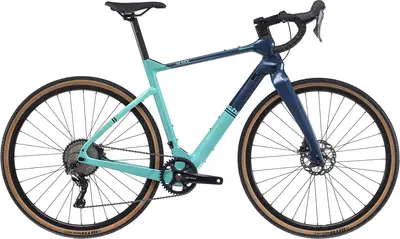

Today’s Deals2022 Bianchi
Arcadex - GRX 810
A carbon frame gravel bike with high-end components and shimano grx 800 hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,261($3,794)| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | GRX 800 |
| Brakes | Shimano GRX 800 Hydraulic Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2021 · Caley Fretz
Super efficient under power, but a brutally stiff ride, odd geometry and aesthetics, and some odd routing and spec choices.
Incredibly stiff.
Incredibly stiff, short fit, questionable looks, limited tire clearance.
Apr 2021 · David Kennedy
Euro gravel shootout
Dec 2020 · Paul Norman
Bianchi says the Arcadex is designed to be fast whatever the conditions
Dec 2020 · VeloNews.com
The Arcadex gravel race bike is built around a full carbon frame, with aero tubes, and room for up to 47mm tires.
| Frame | Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition, sizes: XS-SM-MD-LG-XL Colors: Gy - Gold Storm / Blue Note Glossy; Gx - Celeste Ck16 / Blue Note Glossy |
|---|---|
| Fork | Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm |
| Bottom Bracket | Shimano SM-BB72-41B |
| Headset | FSA SMR HS with 1.1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061, 1 1/4", rise 0°, Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL |
| Saddle | Reparto Corse 2315HRN, rail steel black, open, cover PU, lenght/wide 250x148mm |
| Seatpost | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm-XS, 350mm-S/M/L/XL Type: Rigid |
| Grips | La Spirale Ribbon cork |
| Rear Derailleur | Shimano RD-RX812, GRX 11sp, top normal shadow plus design, direct attachment, direct mount compatible |
|---|---|
| Crank | Shimano GRX 810 FC-RX810-1 40T, Hollowtech II, Crank Length: 170mm-XS/SM, 172.5mm-MD/LG, 175mm-XL |
| Shifters | Shimano GRX 810 ST-RX810 1x11sp |
| Cassette | Shimano SLX CS-M7000, 11sp 11-13-15-17-19-21-24-28-32-37-42T |
| Chain | Kmc X11-1 EPT finish |
| Brakes | Shimano BR-RX810 Type: Shimano GRX 800 Hydraulic Disc |
| Brake Levers | included w/shifters |
| Rims | AlexRims GD24 disc 622-21, tubeless ready |
|---|---|
| Rear Hub | Shimano FH-RS470 |
| Tires | WTB Riddler Comp 700x37 |
| Disc Rotors | Shimano SM-RT70, diam. 160mm |
First added November 29
Last updated October 17
Not listed for 1,307 days
