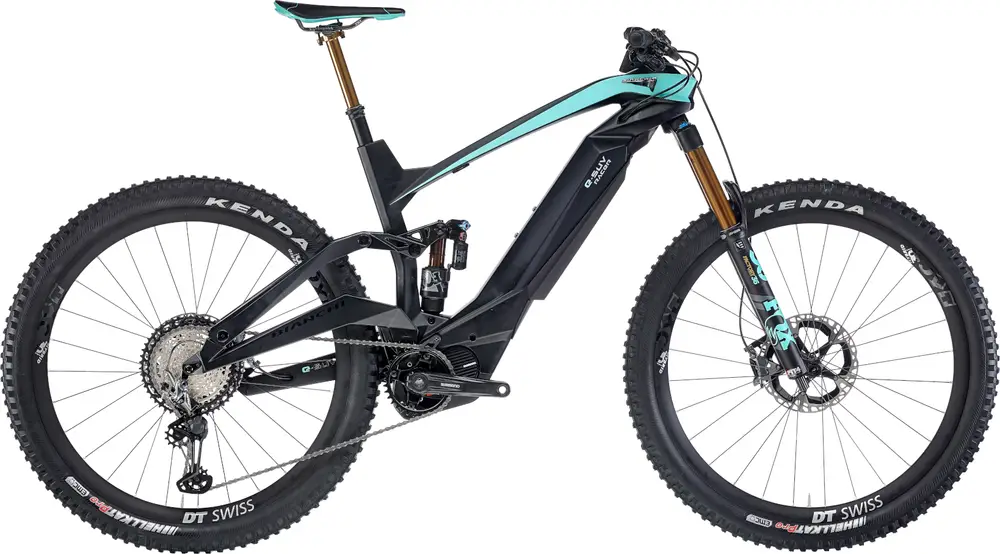

2021 Bianchi
e-SUV Racer XTR

A 29″ carbon frame full suspension enduro e-bike with ultra high-end components.
Compare the full range

Where to Buy

Similar Bikes

Top Comparison

Geometry

Specs

Build

Frame	Bianchi E-SUV Full Carbon 150mm, 1.5" tapered HT, seatpost diam.31,6mm, integrated seat clamp, PM 180mm, thru axle 12x148mm, internal cable routing, sizes 43,48,53cm
Fork	Fox 36 Float 29" Factory, specific E-bike tuning, 160mm travel Travel: 160mm Spring Type: Air
Shock	Fox Float X2 Factory Travel: 150mm
Bottom Bracket	included w/motor unit
Headset	Fsa NO.55R/558 1.5"
Stem	integrated w/handlebar
Handlebar	Bianchi full carbon integrated handlebar/stem
Saddle	Fi'zi:k Taiga, S-alloy rails
Seatpost	Fox Transfer Factory, internal cable routing, diam. 31,6mm, travel: 100mm-15", 125mm-17", 150mm-19/21" Type: Dropper
Pedals	Included
Grips	T-One Rock T-GP34 single lock grip

Groupset

Rear Derailleur	Shimano XTR RD-M9100SGS 12sp Shadow+ Design
Crank	Shimano FC-E8000 Alu, crank length 165mm
Shifters	Shimano XTR SL- M9100IR 1x12sp
Cassette	Shimano CS-M8100-12, 10-51T
Chain	Shimano CN-M8100 12sp
Brakes	Shimano XTR BR-M9120, 4 pistons brakes Type: Shimano XTR Hydraulic Disc

Wheels

Rims	DT Swiss HXC1200 Spline Carbon 29" 30mm, Thru axle 15x110mm front, 12x148mm rear
Tires	Kenda Hellkat 29x2.6
Disc Rotors	Shimano front: RT-MT900 & rear: RT-EM910 with magnet for speed sensor, diam. 203mm

Electric Components

Motor	Shimano Steps E-8000 w/DU-E8000 drive unit, w/720Wh Darfon battery, w/34T chainring, w/speed sensor, w/SC-E8000 cycle computer
Battery	Shimano Steps E-8000 w/DU-E8000 drive unit, w/720Wh Darfon battery, w/34T chainring, w/speed sensor, w/SC-E8000 cycle computer
