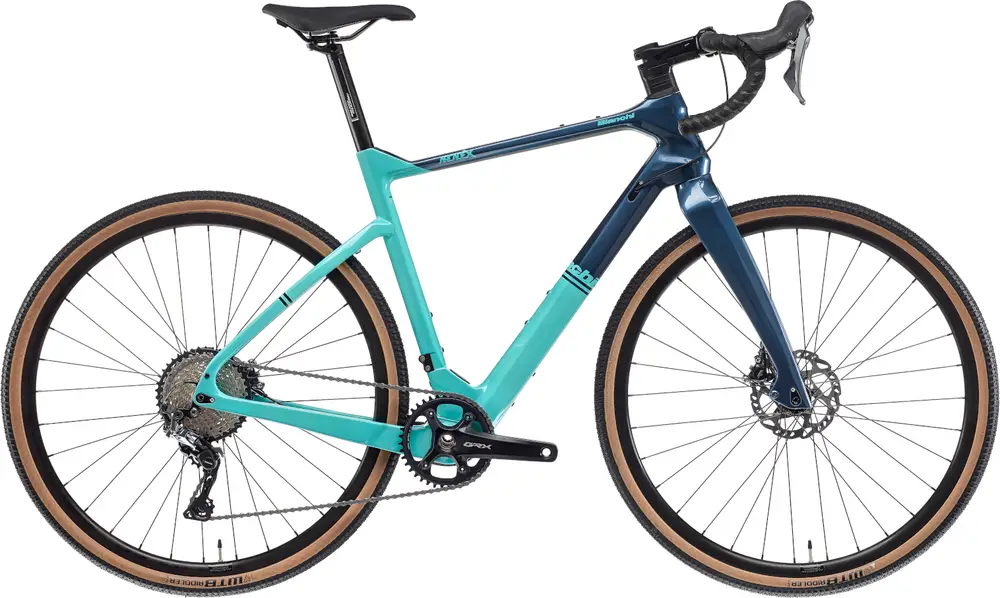

Today’s Deals2021 Bianchi
Arcadex GRX 810
A carbon frame gravel bike with high-end components and shimano grx 800 hydraulic disc brakes.
Compare the full range
| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | GRX 800 |
| Brakes | Shimano GRX 800 Hydraulic Disc |
Oct 2021 · Caley Fretz
Super efficient under power, but a brutally stiff ride, odd geometry and aesthetics, and some odd routing and spec choices.
Incredibly stiff.
Incredibly stiff, short fit, questionable looks, limited tire clearance.
Apr 2021 · David Kennedy
Euro gravel shootout
Mar 2021 · Matthew Loveridge
The Arcadex isn’t ultra comfy, but it’s a pleasure to ride on and off road, and it looks like nothing else
Unique looks
Road bike feel with gravel versatility
Firmer ride than some
No carbon seatpost
Fork eyelets not threaded
Dec 2020 · VeloNews.com
The Arcadex gravel race bike is built around a full carbon frame, with aero tubes, and room for up to 47mm tires.
| Frame | Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition, sizes: XS-SM-MD-LG-XL |
|---|---|
| Fork | Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm |
| Bottom Bracket | Shimano SM-BB72-41B |
| Headset | FSA SMR HS with 1.1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061, 1 1/4", rise 0°, Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL |
| Saddle | Reparto Corse 2315HRN, rail steel black, open, cover PU, lenght/wide 250x148mm |
| Seatpost | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm-XS, 350mm-S/M/L/XL Type: Rigid |
| Grips | La Spirale Ribbon cork |
| Rear Derailleur | Shimano RD-RX812, GRX 11sp, top normal shadow plus design, direct attachment, direct mount compatible |
|---|---|
| Crank | Shimano GRX 810 FC-RX810-1 40T, Hollowtech II, Crank Length: 170mm-XS/SM, 172.5mm-MD/LG, 175mm-XL |
| Shifters | Shimano GRX 810 ST-RX810 1x11sp |
| Cassette | Shimano SLX CS-M7000, 11sp 11-13-15-17-19-21-24-28-32-37-42T |
| Chain | Kmc X11-1 EPT finish |
| Brakes | Shimano BR-RX810 Type: Shimano GRX 800 Hydraulic Disc |
| Brake Levers | included w/shifters |
| Rims | AlexRims GD24 disc 622-21, tubeless ready |
|---|---|
| Front Hub | Shimano HB-RS470 |
| Rear Hub | Shimano FH-RS470 |
| Tires | WTB Riddler Comp 700x37 |
| Disc Rotors | Shimano SM-RT70, diam. 160mm |
