2020 Bianchi

Orso Sora

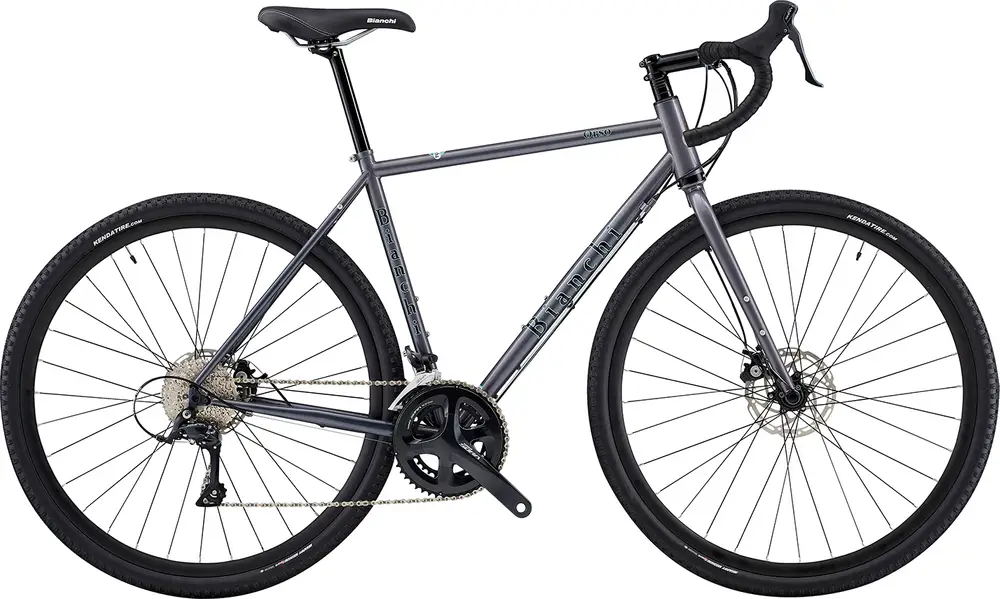

A steel frame gravel bike with mid-range components and mechanical disc brakes.
Compare the full range

FrameSteel
SuspensionRigid
ForkSteel
Wheels700c Aluminum
Drivetrain2 × 9
GroupsetSora
BrakesMechanical Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

39 mph

Orso Sora

36 mph

Similar Bikes

Highest gear

(descending)

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Orso steel, 1.4" - 1.1/8" headset, seatpost diam. 27.2mm, flat mount disc, thru axle 12x142mm, bbset BSA, compatible with 42mm tire, mudguard and rear carrier ready, sizes 46-49-51-53-55-57-59-61cm

BB StandardBSA, 68mm, Threaded

Fork

Bianchi Cr-Mo disc

Bottom Bracket

Fsa BB7420ST, 113MM

Headset

Fsa NO.11AGY/NO.12B/47-2, 1.1/4" - 1.1/8"

Stem

3D Forged Alloy, rise 7°, 31.8mm, ext: 70mm-46cm, 90mm-49/53cm, 100mm-55cm, 110mm-57/59cm, 120mm-61cm

Handlebar

Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 in size 40cm and 130mm in size 42-44cm, Size: 400mm-46/53cm, 420mm-55/59cm, 440mm-61/63cm

Saddle

Bianchi, steel rails

Seatpost

AL6061 shaft, alloy head, 15mm offset, diam. 27,2mm, Length: 300mm-46cm, 350mm-49/61cm

TypeRigid

Grips

Cork w/Bianchi logo

Groupset
Rear Derailleur

Shimano Sora RD-R3000 GS 9sp

Front Derailleur

Shimano Sora FD-R3000

Crank

Shimano Sora FC-R3000 50x34T, Crank Length: 165mm-46/50cm, 170mm-53/57cm, 172.5mm-59/61cm

Shifters

Shimano Sora ST-R3000 2x9sp

Cassette

Shimano CS-HG400-9, 11-13-15-17-20-23-26-30-34T

Chain

Kmc X9 9sp

Brakes

Tektro MD-C510

TypeMechanical Disc

Brake Levers

included w/shifters

Wheels
Rims

AlexRims ATD500 disc

Front Hub

Formula CL-712 road disc

Rear Hub

Formula CL-400 disc

Tires

Kenda Happy Medium 700x40

Disc Rotors

Tektro TR-160-35, 160mm
