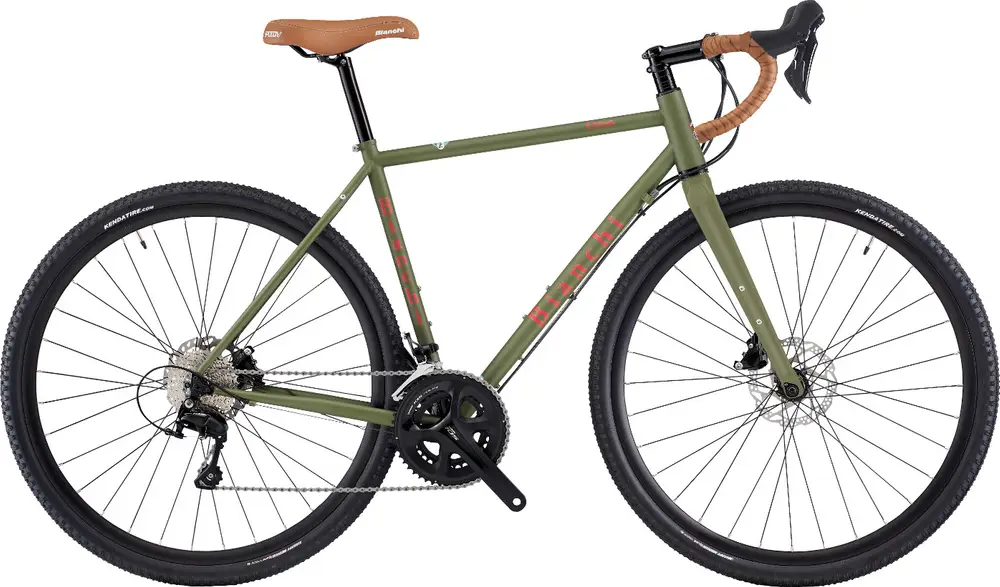

2020 Bianchi

Orso 105

A steel frame gravel bike with upper mid-range components and hydraulic disc brakes.
Compare the full range

FrameSteel
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 11
Groupset105
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

39 mph

Orso 105

36 mph

Similar Bikes

Highest gear

(descending)

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Orso steel, 1.4" - 1.1/8" headset, seatpost diam. 27.2mm, flat mount disc, thru axle 12x142mm, bbset BSA, compatible with 42mm tire, mudguard and rear carrier ready, sizes 46-49-51-53-55-57-59-61cm

BB StandardBSA, 68mm, Threaded

Fork

Bianchi Alu/Carbon 1.4" - 1.1/8", flat mount disc brake, thru axle 12x100mm

Bottom Bracket

Shimano SM-BBR60

Headset

Fsa NO.11AGY/NO.12B/47-2, 1.1/4" - 1.1/8"

Stem

3D Forged Alloy, rise 7°, 31.8mm, ext: 70mm-46cm, 90mm-49/53cm, 100mm-55cm, 110mm-57/59cm, 120mm-61cm

Handlebar

Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 in size 40cm and 130mm in size 42-44cm, 31.8mm, Size: 400mm-46/53cm, 420mm- 55/59cm, 440mm-61/63cm

Saddle

Wtb Speed V Sport SE, steel rail

Seatpost

AL6061 shaft, alloy head, 15mm offset, diam. 27,2mm, Length: 300mm-46cm, 350mm-49/61cm

TypeRigid

Grips

Cork w/Bianchi logo

Groupset
Rear Derailleur

Shimano 105 RD-R7000 GS 11sp

Front Derailleur

Shimano 105 FD-R7000-L

Crank

Shimano 105 FC-R7000 50x34T, Hollowtech II, Crank Length: 170mm-46/55cm, 172.5mm-57/59cm, 175mm-61cm

Shifters

Shimano 105 ST-R7020 2x11sp

Cassette

Shimano 105 CS-HG70011, 11-13-15-17-19-21-23-25-27-30-34T

Chain

Kmc X11-1 EPT finish, 11sp

Brakes

Shimano BR-R7070

TypeHydraulic Disc

Brake Levers

included w/shifters

Wheels
Rims

AlexRims ATD500 road disc

Front Hub

Formula CL-712 road disc

Rear Hub

Formula RXC-142S road disc

Tires

Kenda Flintridge 700x40

Disc Rotors

Shimano SM-RT70, diam. 160mm
