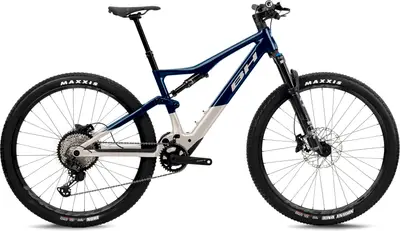

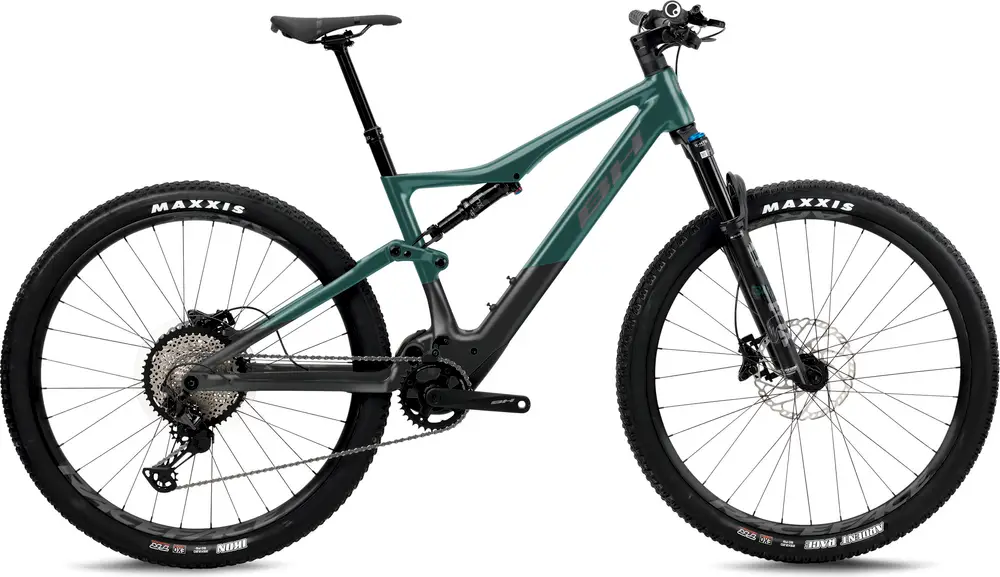

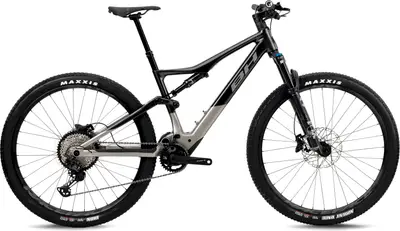

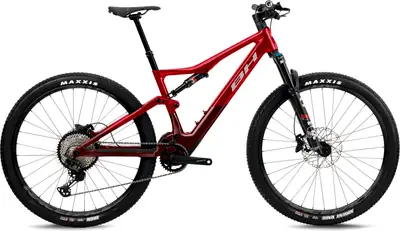

2023 BH

iLYNX RACE 7.7

A 29″ carbon frame full suspension trail e-bike with high-end components.

Manufacturer Price

£6,299($8,452)
FrameCarbon
SuspensionFull, 120 / 120mm
ForkFox Performance Float 34
ShockFox Float DPS Performance
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT, Deore
Motormid-drive
Battery540Wh
BrakesSRAM DB8 Hydraulic Disc
SeatpostDropper
View on bhbikes.comLearn about BH
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
iLYNX RACE 7.7
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

iLYNX RACE 7.7

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
E-Mountainbike Magazine
The BH⁠iLynx+ in a duel with itself - Trail vs enduro

Aug 2023 · Julian Schwede

Two eMTBs with the same components but different travel lengths head-to-head. On your marks, get set, go!

Highs

  • Easily removable battery without a big opening in the down tube

  • Good all-round capability

  • Unobtrusive, well-performing rear suspension

Lows

  • Unusual look that takes some getting used to

  • Room for improvement in the specced components

Read Review

Geometry
Specs
Build
Frame

120 mm FS Carbon 29",EC Layup, internal cable routing

Colors: Rojobh Maquillaje Rojooscuro; Carbono Cooper Cooper; Azuloscuro Cooper Cooper; Grisclaro Carbono Grisoscuro; Verdeoscuro Grisoscuro Grisclaro

Fork

FOX 34 FLOAT Performance 120mm 15QR

Travel: 120mm

Spring Type: Air

Shock

FOX FLOAT DPS Performance

Travel: 120mm

Bottom Bracket

-

Headset

Acros AIF-560 ICR BL.

Stem

BH Evo 31 Fit

Handlebar

BH MTB Lite Alloy Riser 780mm

Saddle

Prologo Proxim W350 Stn

Seatpost

Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 80mm, MD 80mm, LA 80mm, XL 80mm

Type: Dropper

Pedals

-

Grips

Ergon GE10

Groupset
Rear Derailleur

Shimano XT 12sp

Front Derailleur

-

Crank

FSA 34T-165mm

Shifters

Shimano Deore

Cassette

Shimano CSM6100 12sp (10-51T)

Chain

Shimano CNM6100

Brakes

Front: SRAM DB8 4 Piston 200mm, Rear: SRAM DB8 4 Piston 200mm

Type: SRAM DB8 Hydraulic Disc

Wheels
Rims

Race Face Ar 30 TR

Spokes

Stainless Steel

Front Hub

BH

Rear Hub

BH

Tires

Maxxis Ardent/Ikon TPI120 MaxxSpeed EXO TR 29X2,2

Electric Components
Motor

NR System

Battery

540Wh

Display

BH i-Remote
