2024 BESV
JTR 1.1

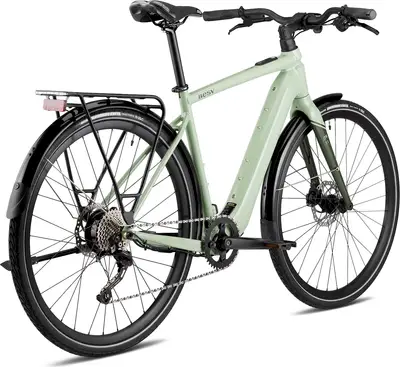

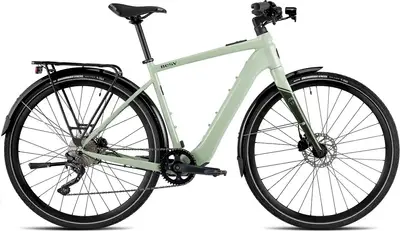

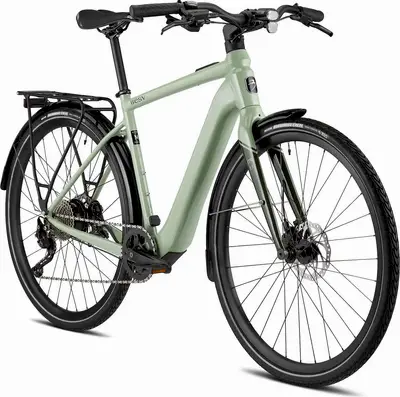

A 700c aluminum frame commuter e-bike with mid-range components and hydraulic disc brakes.

Manufacturer Price

€2,999($3,489)

Where to Buy

Similar Bikes

Top Comparison

Insights

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing

5'1" – 5'5"

5'4" – 5'10"

5'8" – 6'2"

6'0" – 6'5"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry

Specs

Build

Frame	BESV alloy frame with built in 360W Darfon battery, for Bafang rear hub motor Color: Bright Ceramic Green with Dark Ceramic Green
Fork	BESV alloy city fork, 1.1/8"-1.5" carbon steerer
Bottom Bracket	with cadence and torque sensor
Headset	Acros, AIX-581, 1.5" headset, angular contact bearings, integrated cable routing
Stem	3D Forged alloy stem, 31.8mm clamp, for internal cable routing
Handlebar	Acros, AIX-581, 1.5" headset, angular contact bearings, integrated cable routing
Saddle	Selle Italia S5 Superflow
Seatpost	Promax SP-226, 27.2mm diameter Type: Rigid
Pedals	Wellgo, alloy body, ball bearings
Grips	Comfortable gel grips with padding

Groupset

Rear Derailleur	SHIMANO CUES, RD-U6020, 10 speed
Crank	Samox EC33-F13-ISIS, 40T chainring
Shifters	SHIMANO CUES, SL-U6000, 10 speed
Cassette	SHIMANO CUES, CS-LG300, 10 speed
Chain	SHIMANO CN-LG500, with Quick-Link
Brakes	Hydraulic disc brake, 2-piston, 160mm front and rear rotors Type: Hydraulic Disc
Brake Levers	2 finger hydraulic disc brake lever

Wheels

Rims	Formula RX-512 front hub, Bafang rear hub, Formula XRD-522 multichamber alloy rims 32H
Tires	700x40c

Electric Components

Motor	Bafang rear hub motor, 250W rated power, 40Nm of torque, 25km/h maximum assist
Battery	360Wh
Display	Darfon with Bluetooth connectivity

Accessories

Fenders	Stainless steel fenders
