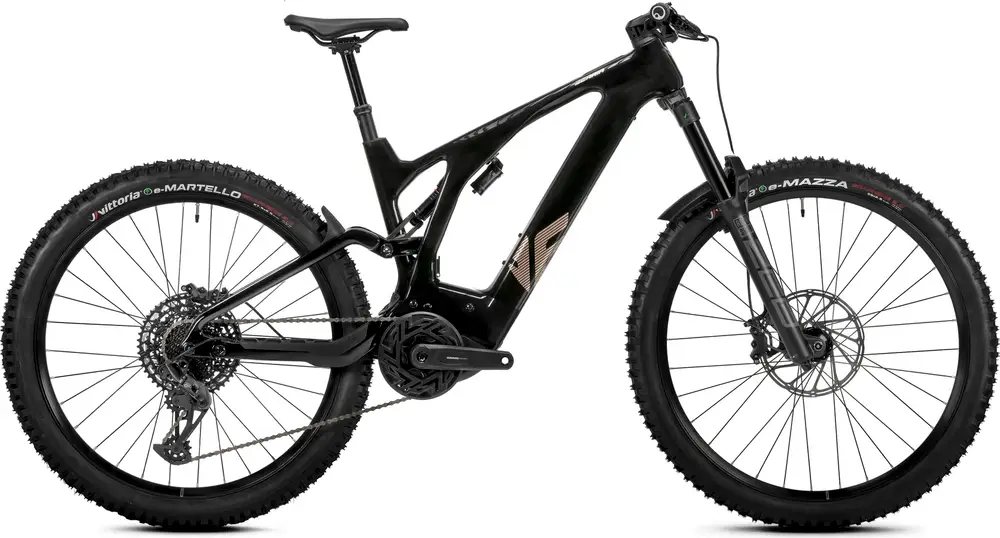

Today’s Deals2024 Berria
STRATOS GX
A 29″ / 27.5″ carbon frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
€7,499($8,725)| Frame | Carbon |
|---|---|
| Suspension | Full, 160 / 160mm |
| Fork | RockShox ZEB |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, S1000 Eagle Transmission |
| Motor | SRAM 250W 90Nm mid-drive |
| Battery | SRAM 720Wh |
| Brakes | SRAM DB8 Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full STRATOS model range
View Comparison5'1" – 5'8"
5'6" – 6'1"
5'10" – 6'5"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Stratos, Geometry Allmountain BGC, Mullet standard with 160mm travel, Full carbon HM3X, Monocoque, MACH-R Nanotech, bearings full ball ISB VMAX, Full internal cable system ICS2, MTB Acros Headset ZS56 with Blocklock 150º, Post mount 200mm, 29x2.60 maximum tyre, Thru axle Boost 12x148mm, UDH standard, weight: 2600gr BB Standard: BSA, Threaded Hanger Standard: UDH Colors: Black-Black-Iris; Black-Naked Carbon-Iris Gradient; Naked Carbon-Electric Red-Iris Gradient |
|---|---|
| Fork | RockShox ZEB Base, 15x110mm Maxle Stealth, Tapered steerer, Debon Air + Dual Position Air, Rake 44mm, 38mm tapered wall aluminium, Diffusion Black, 160mm travel, weight: 2020gr Travel: 160mm Spring Type: Air |
| Bottom Bracket | BSA, threaded |
| Handlebar | Avanforce AF2 MTB, Aluminum 6061, Ø31,8mm, width 780mm, Backsweep 6°, Upsweep 5°, Rise 20mm, weight: 330gr |
| Saddle | Essax Era, Steel rails, length: 250mm, width: 145mm, weight: 280gr |
| Seatpost | Crank Brothers HIGHLINE 3 Dropper post, Aluminum 7075-T6, 0 offset, Ø31,6, 170mm travel, weight: 609gr Type: Dropper |
| Rear Derailleur | SRAM GX Eagle Lunar, Aluminum cage, 12 Speed |
|---|---|
| Crank | S1000 Eagle SRAM Powertrain ISIS Drive Cranks, length: 165mm |
| Shifters | SRAM SX Eagle Trigger 12V, X-actuation, weight 133g |
| Cassette | SRAM PG 1210 Eagle, 11-50T |
| Chain | SRAM SX Eagle A1, 122 links |
| Brakes | SRAM DB8 Black 4 Piston Type: SRAM DB8 Hydraulic Disc |
| Rims | Mavic E-Crossride 29"/27,5", 15x110, Boost 12x148mm, TLR, XDR or SH Rear Hub, 6 Bolts, internal width: 30mm, weight: 2225gr |
|---|---|
| Tires | Vittoria E-Mazza Enduro 29x2,60, E-Martello Enduro, 27,5x2,40", Tubeless Ready, Graphene 4C Compound, 120 TPI, set weight: 2630gr |
| Motor | SRAM Eagle Powertrain Drive Unit, 250W, 90NM |
|---|---|
| Battery | SRAM Eagle Powertrain Full Size, 720WH |
| Display | SRAM Eagle Powertrain AXS Bridge Display |
| Charger | Eagle Powertrain Charger EU/UK/US Plug Supplied |
First added July 22
Last updated November 9
Not listed for 575 days
