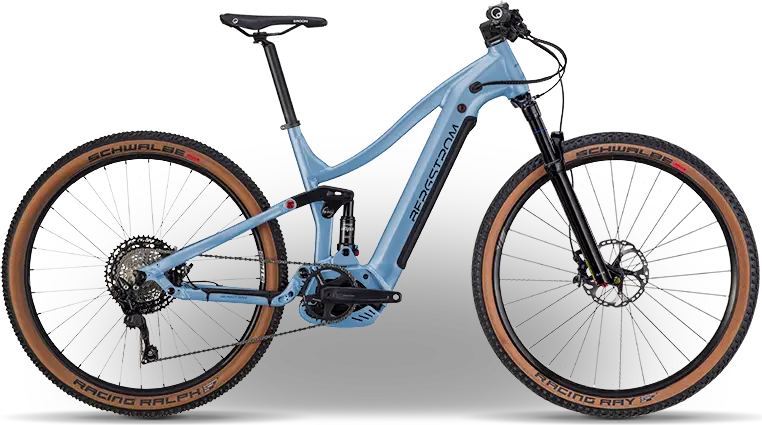

2023 Bergstrom

XCV 869

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

CHF 7,399($9,385)
FrameAluminum
SuspensionFull, 100 / 120mm
ForkRockShox SID Select
ShockSuntour
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT, SLX
MotorBosch 600W 85Nm mid-drive
BatteryBosch 625Wh
BrakesSRAM DB8 Hydraulic Disc
SeatpostDropper
View on bergstrom.bikeLearn about Bergstrom
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
XCV 869
Other Trail bikes
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full XCV model range

View Comparison
Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Bergstrom FS ePerformance XC aluminum frame, PowerTube Vario down tube, LCOG rear end with 100mm travel, inverted trunnion mount, Postmount 160, Bosch Gen4 interface, Boost 12x148mm axle, ICR 1.5” headtube

BB Standard: Bosch, Press Fit

Fork

Rock Shox SID Select 29 Boost, 120mm

Travel: 120mm

Shock

SR Suntour Edge

Travel: 100mm

Bottom Bracket

Bosch, press-fit

Stem

FSA ACR 50mm -10° Stem 31.8mm

Handlebar

FSA V-Drive Riser 740mmx31.8mm 15mm Rise

Saddle

Ergon saddle SM10

Seatpost

JD Vario, 95-125mm

Type: Dropper

Groupset
Rear Derailleur

Shimano XT, 12-speed

Crank

FSA CK-320 34T.

Shifters

Shimano SLX SL-M7100

Cassette

Shimano SLX CS-M7100 10-51T. 12spd

Chain

Shimano CN-M7100

Chain Guide

optionally retrofittable

Brakes

SRAM DB8 disc brake

Type: SRAM DB8 Hydraulic Disc

Wheels
Rims

Front: System impeller 29 / 30mm, Boost 110 x 15 Centerlock, Rear: System impeller 29 / 30mm, Boost 148 x 12 Centerlock Microspline

Tires

Schwalbe Racing Ray/Ralph TS 29×2.35″ Tubeless Ready

Electric Components
Motor

Bosch G4 Performance CX, 25km/h

Battery

Bosch PowerTube 625

Charger

Bosch 36V 4A Charger, 230V
