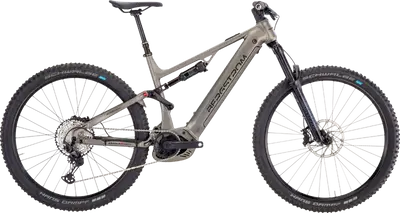

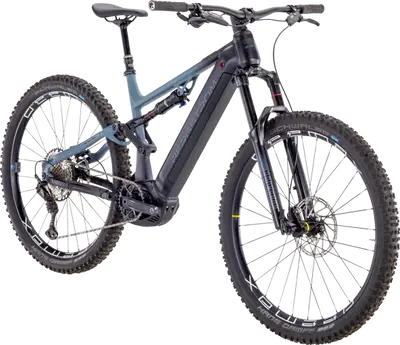

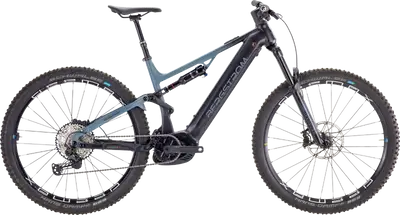

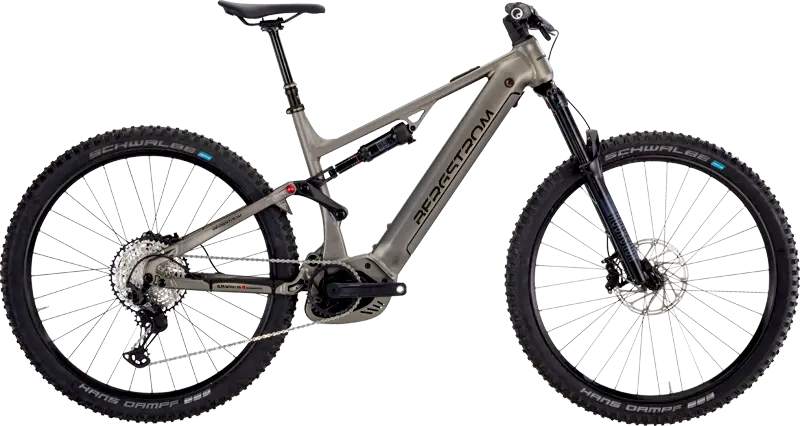

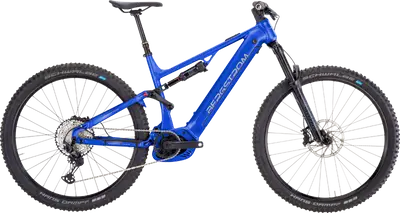

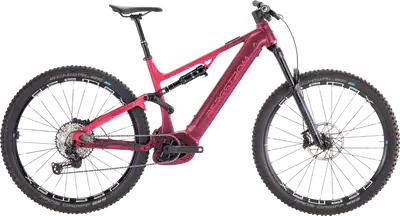

Today’s Deals2023 Bergstrom
AXV 869
A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
| Frame | Aluminum |
|---|---|
| Suspension | Full, 140 / 150mm |
| Fork | RockShox Lyrik Select+ |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, SLX |
| Motor | Bosch 85Nm hub-drive |
| Battery | Bosch 750Wh |
| Brakes | SRAM DB8 Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Bergstrom FS ePerformance Trail aluminum frame, PowerTube Vario down tube, rear triangle with 140mm travel, Horizontal Shock Link, Postmount 180, Bosch Gen4 interface, Boost 12x148mm axle, ZS56/ZS56 1.5″ headtube, 30.9mm seattube SRAM UDH interchangeable eyelet for 12×180 (1.0) Thru Axle BB Standard: Bosch, Press Fit Hanger Standard: UDH |
|---|---|
| Fork | Rock Shox LYRIK Select+ Boost 150mm suspension fork, tapered steerer, 35mm stanchions, PM 180, DebonAir+ air spring, Charger 3 RC2 damper, Maxle Stealth 110x15mm Travel: 150mm Spring Type: Air |
| Bottom Bracket | Bosch, press-fit |
| Stem | Satori Viper 0 ICR Stem 45mm/31.8mm |
| Handlebar | Satori Horizon Bow Di2 handlebar 780×31.8mm, 7mm rise |
| Saddle | Ergon SM10 black |
| Seatpost | JD dropper post R.A.D. JD-YSI05GL, Ø 30.9mm x 405mm, travel 95-125mm adjustable without tools Type: Dropper |
| Rear Derailleur | Shimano XT RD-M8100 12spd |
|---|---|
| Crank | FSA CK-320 165mm ISIS |
| Shifters | Shimano SLX SL-M7100 |
| Cassette | Shimano SLX CS-M7100 10-51T. 12spd |
| Chain | Shimano CN-M7100 |
| Chain Guide | optionally retrofittable |
| Brakes | SRAM DB8 Mineral Oil 4-piston 200/180mm Type: SRAM DB8 Hydraulic Disc |
| Rims | Front: Mavic E Deemax 30/29, Boost 110x15 Centerlock, Rear: Mavic E Deemax 30 / 29, Boost 148 x 12 Centerlock Microspline |
|---|---|
| Tires | Schwalbe WICKED WILL EVO Super Trail 29″x2.35″ (60-622), foldable |
| Motor | Bosch CX BES3 85Nm 25km/h |
|---|---|
| Battery | Bosch PowerTube 750 horizontal |
| Charger | 36V 4A Charger, 230V |
