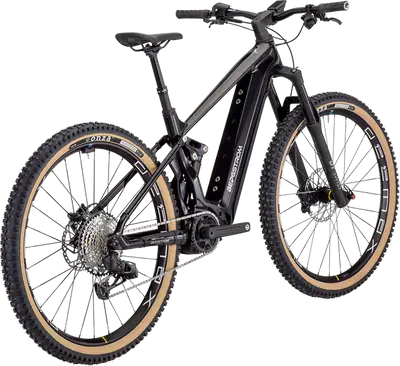

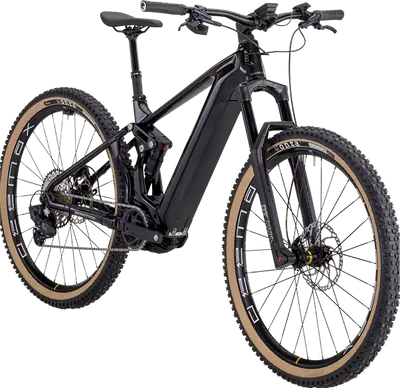

2023 Bergstrom

ATV C 949

A 29″ carbon frame full suspension enduro e-bike with upper mid-range components.

FrameCarbon
SuspensionFull, 150 / 150mm
ForkRockShox 35 Gold RL
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT, SLX
MotorBosch 85Nm mid-drive
BatteryBosch 750Wh
BrakesSRAM DB8 Hydraulic Disc
SeatpostDropper
View on bergstrom.bikeLearn about Bergstrom
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
ATV C 949
Other Enduro bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

ATV C 949

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Bergstrom ATV C carbon frame with aluminum rear triangle, 150mm travel. Bosch 750Wh Powertube ready, Bosch CX Interface, ZS56/ZS56 Headtube with Modular Cable Routing, 148×12 (1.5P), 31.6 Seatpost

BB Standard: Bosch, Press Fit

Fork

Rock Shox 35 Gold RL Boost 150mm suspension fork, tapered steerer, 35mm stanchions, PM 180, DebonAir air spring, Motion Control damper, Maxle Lite 110x15mm, full fender mount

Travel: 150mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Stem

Satori VIPER 0 45mm, Ø 31.8, matt black

Handlebar

Satori HORIZON BOW Di2 handlebar 780×31.8mm, 7mm rise

Saddle

Ergon SMA20 saddle, black

Seatpost

KS Vario seat post E20i, Ø 31.6mm x 360mm (SM 100mm, MD/LG 125mm

Type: Dropper

Groupset
Rear Derailleur

Shimano XT RD-M8100-SGS 12spd

Crank

FSA Direct Mount for Bosch, 34T

Shifters

Shimano SLX SL-M7100 12spd

Cassette

Shimano CS-M7100-12 10-51T

Brakes

SRAM DB8 4-piston disc brake with 200/180 disc

Type: SRAM DB8 Hydraulic Disc

Wheels
Rims

Front: Mavic E-DEEMAX 29 30mm, 110x15mm Boost, Centerlock, Rear: Mavic E-DEEMAX 29 30mm, 148x12mm Boost, Centerlock

Tires

Onza PORCUPINE Skinwall 29×2.60, TRC Casting, foldable

Electric Components
Motor

Bosch CX Drive Unit, (The Smart System), 85Nm

Battery

Bosch Powertube 750Wh horizontal (The Smart System)

Charger

Bosch 4A Charger (The Smart System)
