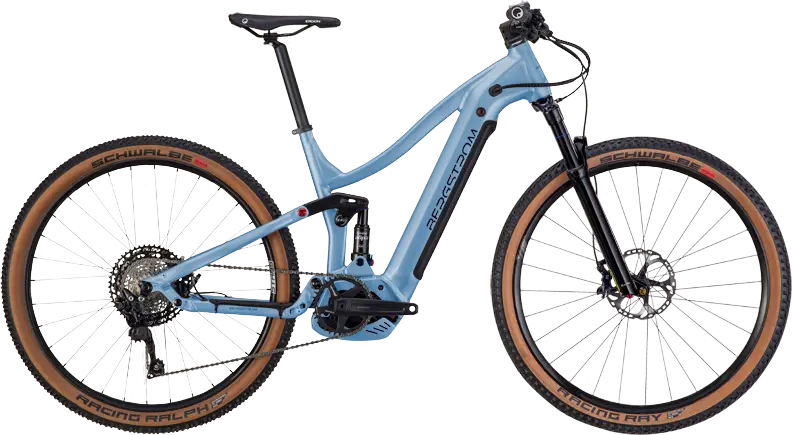

2022 Bergstrom

XCV 869

A 29″ aluminum frame full suspension crosscountry e-bike with upper mid-range components.
Compare the full range

FrameAluminum
SuspensionFull, 100 / 120mm
ForkRockShox SID Select
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT, SLX
MotorBosch mid-drive
BatteryBosch 625Wh
BrakesSRAM DB8 Hydraulic Disc
SeatpostDropper
View on bergstrom.bikeLearn about Bergstrom
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
XCV 869
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

XCV 869

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Bergstrom FS ePerformance XC aluminum frame, PowerTube Vario down tube, LCOG rear end with 100mm travel, inverted trunnion mount, Postmount 160, Bosch Gen4 interface, Boost 12x148mm axle, ICR 1.5” headtube

BB Standard: Bosch, Press Fit

Fork

Rock Shox SID Select 29 Boost 120mm suspension fork, tapered steerer, 35mm tapered stanchions, offset 44mm, PM180, DebonAir, Charger RL damper, Maxle Stealth 110x15mm

Travel: 120mm

Spring Type: Air

Bottom Bracket

Bosch, press-fit

Stem

FSA ACR 50mm -10° Stem 31.8mm

Handlebar

FSA V-Drive Riser 740mmx31.8mm 15mm Rise

Saddle

Ergon SMA30 black

Seatpost

JD RAD 30.9mm dropper post 95-125mm travel

Type: Dropper

Groupset
Rear Derailleur

Shimano XT RD-M8100 12spd

Crank

FSA CK-320 34T.

Shifters

Shimano SLX SL-M7100

Cassette

Shimano SLX CS-M7100 10-51T. 12spd

Chain

Shimano CN-M7100

Chain Guide

optionally retrofittable

Brakes

SRAM DB8 4-piston disc brake, 180/180mm

Type: SRAM DB8 Hydraulic Disc

Wheels
Rims

Front: System impeller 29 / 30mm, Boost 110 x 15 Centerlock, Rear: System impeller 29 / 30mm, Boost 148 x 12 Centerlock Microspline

Tires

Schwalbe Racing Ray/Ralph TS 29×2.35″ Tubeless Ready

Electric Components
Motor

Bosch Smart System CX engine

Battery

Bosch PowerTube 625Wh horizontal

Charger

Bosch 36V 4A Charger, 230V
