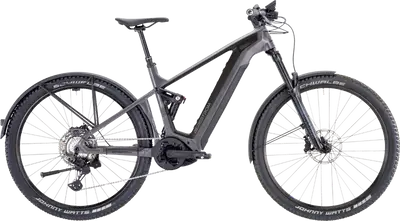

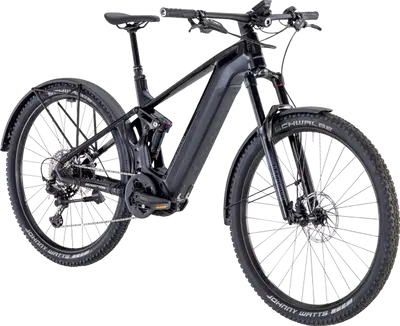

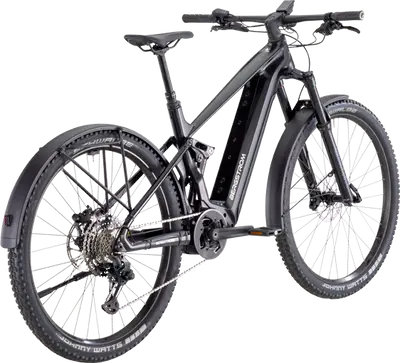

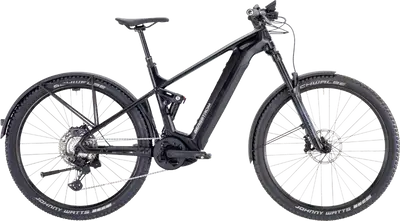

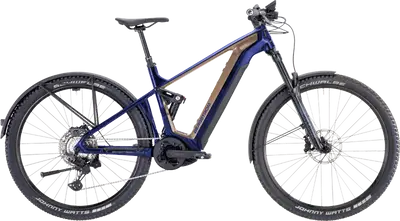

2022 Bergstrom

ATV 9 SUV

A 29″ carbon frame full suspension enduro e-bike with high-end components.
Compare the full range

FrameCarbon
SuspensionFull, 150 / 150mm
ForkRockShox 35 Gold RL
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetXT
MotorBosch 600W 85Nm mid-drive
BatteryBosch 750Wh
BrakesShimano Hydraulic Disc
SeatpostDropper
View on bergstrom.bikeLearn about Bergstrom
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
ATV 9 SUV
Other Enduro bikes
Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Bergstrom FS eVPP high-performance carbon frame, modular battery construction with minimal battery cut, VPP rear end with 150mm travel, trunnion mount rocker, Postmount 160, Boost 12x148mm axle, ZS56/ZS56 headtube, Smart-Route cable routing in the steering head

Fork

Rock Shox 35 Gold RL Boost 150mm suspension fork, tapered steerer, 35mm stanchions, PM 180, DebonAir air spring, Motion Control damper, Maxle Lite 110x15mm, full fender mount

Travel: 150mm

Spring Type: Air

Stem

FSA ACR 50mm -10° Stem 31.8mm

Handlebar

Satori Horizon Bow Di2 handlebar 780×31.8mm, 7mm rise

Saddle

Ergon SM10 black

Seatpost

KS e20 31.6mm 125mm Travel (Big S 100mm Travel)

Type: Dropper

Groupset
Rear Derailleur

Shimano XT RD-M8130-SGS 11spd

Crank

FSA CK-320 165mm ISIS

Shifters

Shimano XT SL-M8130 11spd

Cassette

Shimano CS-M8130 11spd LinkGlide

Chain

Shimano CN-LG500 LinkGlide 11spd

Chain Guide

optionally retrofittable

Brakes

Shimano BR-MT420 4-piston 180/180mm

Type: Shimano Hydraulic Disc

Wheels
Rims

Front: DT Swiss H1900 Hybrid 29 inch, Rear: DT Swiss H1900 Hybrid 29 inch

Tires

Schwalbe Johnny Watts 29×2.35" Performance, DD Guard

Electric Components
Motor

Bosch Performance Speed BES3 85Nm 45km/h

Battery

Bosch PowerTube 750 horizontal

Charger

36V 4A Charger, 230V

Accessories
Lights

Front: Supernova E3 V521 HBM, Rear: Supernova E3 Taillight Fender Mount

Fenders

Hebie Alumee R65 29″

Stand

Hebie FIX40 T
