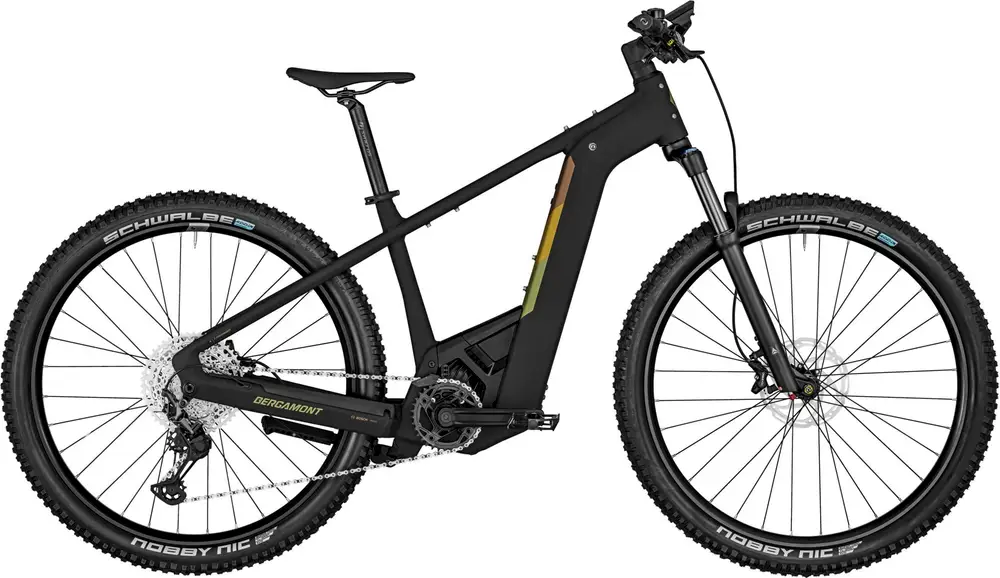

2025 Bergamont

E-Revox Expert

A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

Manufacturer Price

£3,299($4,439)
Weight59.7 lbs
FrameAluminum
SuspensionHardtail, 120mm
ForkSuntour XCR Air
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT, Deore
MotorBosch 250W 85Nm mid-drive
BatteryBosch 750Wh
BrakesTektro Hydraulic Disc
View on bergamont.comLearn about Bergamont
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

E-Revox Expert

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

29", super lite AL-6061 tubing, BES III, PowerTube battery

BB Standard: Bosch, Press Fit

Color: Matt Black

Fork

Suntour XCR34 LOR Air, 120 mm, rebound adjust, 15x110 mm axle

Travel: 120mm

Spring Type: Air

Bottom Bracket

Bosch, Isis

Headset

Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock

Stem

Satori Viper, 0°

Handlebar

Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm

Saddle

Syncros Tofino 2.5

Seatpost

Syncros M3.0

Type: Rigid

Pedals

MTB alloy

Grips

Syncros E-MTB

Groupset
Rear Derailleur

Shimano Deore XT, RD-M8100, Shadow Plus

Crank

FSA CK-320, 34t, 170 mm

Shifters

Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter

Cassette

Shimano Deore, CS-M6100, 10-51t

Chain

KMC e12S

Brakes

Tektro HD-M745, hydraulic disc brake, 4-piston

Type: Tektro Hydraulic Disc

Brake Levers

Tektro HD-M745, hydraulic disc brake

Wheels
Rims

Cross X18, disc, eyelets, width: 30 mm

Spokes

stainless, black

Front Hub

Shimano HB-MT410-B, centerlock, disc, 15x110 mm axle

Rear Hub

Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle

Tires

Front: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light

Disc Rotors

Tektro TR180-35, 180 mm

Electric Components
Motor

Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h

Battery

Bosch PowerTube, 36 V Li Ion, 750 Wh

Display

Bosch LED Remote with Kiox 300 display

Charger

Bosch Standard Charger, 4A
