Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals

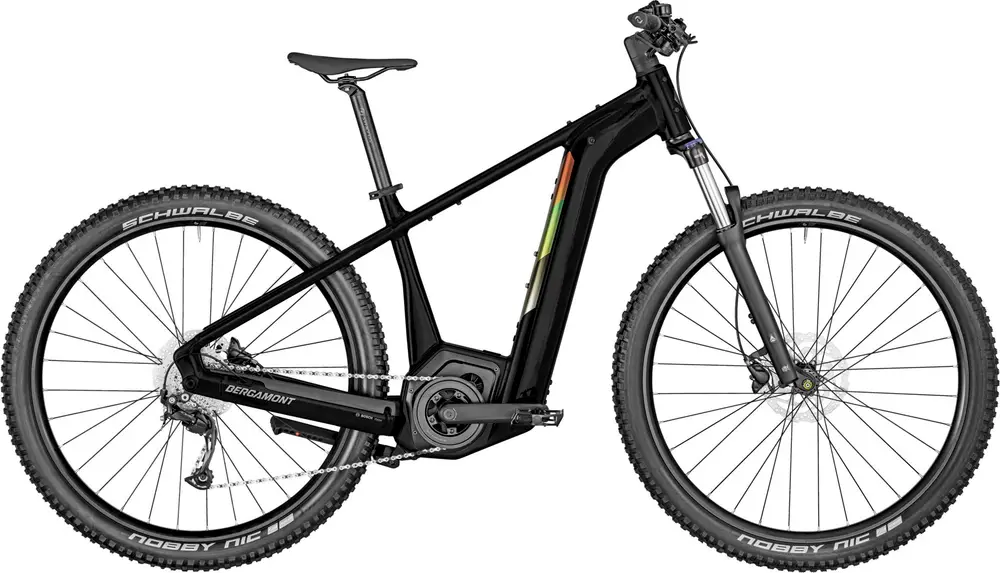

2023 Bergamont

E-Revox Edition

A 29″ aluminum frame hardtail trail e-bike with mid-range components.

Manufacturer Price

£2,399($3,228)
Weight58.4 lbs
FrameAluminum
SuspensionHardtail, 120mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 9
GroupsetAlivio
MotorBosch 250W 63Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Hydraulic Disc
View on bergamont.comLearn about Bergamont
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

E-Revox Edition

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

29", super lite AL-6061 tubing, BES III, PowerTube battery

BB Standard: Bosch, Press Fit

Color: Shiny Black

Fork

Suntour XCM32 LO DS, 120 mm, rebound adjust, 15x100 mm axle

Travel: 120mm

Spring Type: Coil

Bottom Bracket

Bosch, Isis

Headset

Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock

Stem

Satori Viper, 0°

Handlebar

Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm

Saddle

Syncros Tofino 2.5

Seatpost

Syncros M3.0

Type: Rigid

Pedals

MTB alloy

Grips

Syncros E-MTB

Groupset
Rear Derailleur

Shimano RD-M3100, Shadow

Crank

FSA CK-200, 34t, 170 mm

Shifters

Shimano SL-M3100, 1x9-speed, rapidfire plus-shifter

Cassette

Shimano CS-HG201, 11-36t

Chain

KMC e9S

Brakes

Shimano BR-MT200, hydraulic disc brake

Type: Shimano Hydraulic Disc

Brake Levers

Shimano BL-MT200, hydraulic disc brake

Wheels
Rims

Cross X18, disc, eyelets, width: 30 mm

Spokes

stainless, black

Front Hub

Shimano HB-MT400, centerlock, disc, 15x100 mm axle

Rear Hub

Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle

Tires

Front: Schwalbe Nobby Nic Performance, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Nobby Nic Performance, 29x2.60" Tube: Schwalbe SV19FB Light

Disc Rotors

Shimano SM-RT10, 180 mm

Electric Components
Motor

Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h

Battery

Bosch PowerTube, 36 V Li Ion, 500 Wh

Charger

Bosch Standard Charger, 4A
