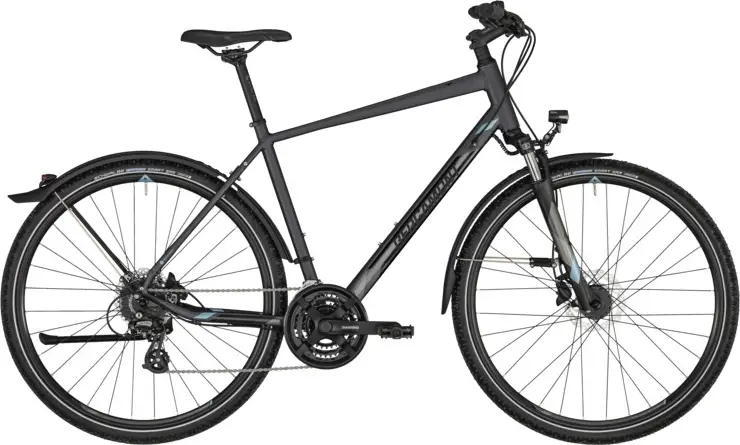

Helix 4 EQ Gent
A 700c aluminum frame hybrid bike with modest components and hydraulic disc brakes.
Compare the full range
Weight | 34.6 lbs |
---|---|
Frame | Aluminum |
Suspension | Hardtail, 63mm |
Fork | Suntour NEX |
Wheels | 700c Aluminum |
Drivetrain | 3 × 8 |
Groupset | Altus, Tourney |
Brakes | Hydraulic Disc |
For This Bike
Frame | 28", lite AL-6061 tubing Color: Anthracite / Black/silver Blue (Matt/shiny) |
---|---|
Fork | Suntour NEX DS, 63 mm, preload adjust Travel: 63mm Spring Type: Coil |
Bottom Bracket | Sealed cartridge |
Headset | BGM Comp, A-Headset, semi-integrated, 1 1/8" |
Stem | Syncros, clamp diameter: 31.8 mm |
Handlebar | Syncros, riserbar, backsweep: 15° |
Saddle | Selle Royal Cross, gent |
Seatpost | Syncros Type: Rigid |
Pedals | MTB 872 KS |
Grips | BGM Comfort, Ergo, double density, clamp version |
Rear Derailleur | Shimano RD-M310 |
---|---|
Front Derailleur | Shimano FD-TY710 |
Crank | Shimano FC-TY301, 48/38/28t, with chaincover |
Shifters | Shimano ST-EF505, 3x8-speed, STI-shifter |
Cassette | Shimano CS-HG200-8, 12-32t |
Chain | KMC Z8 |
Brakes | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm Type: Hydraulic Disc |
Brake Levers | Shimano ST-EF505, hydraulic disc brake |
Rims | BGM Comp X2, disc, 32h |
---|---|
Spokes | steel, black |
Front Hub | Shimano dynamo hub, DH-3D37, centerlock, disc, quick release |
Rear Hub | Shimano, centerlock, disc, quick release |
Tires | Schwalbe Smart Sam, Addix, reflective stripe, 44-622 Tubes: Schwalbe SV17A Light |
Lights | Front: Axa Compactline 20 Lux, LED, standlight Rear: B&M Bergamont Special LED, integrated in fender, standlight |
---|---|
Fenders | SKS Velo Cross |
