2020 Bergamont

E-Revox 3 26

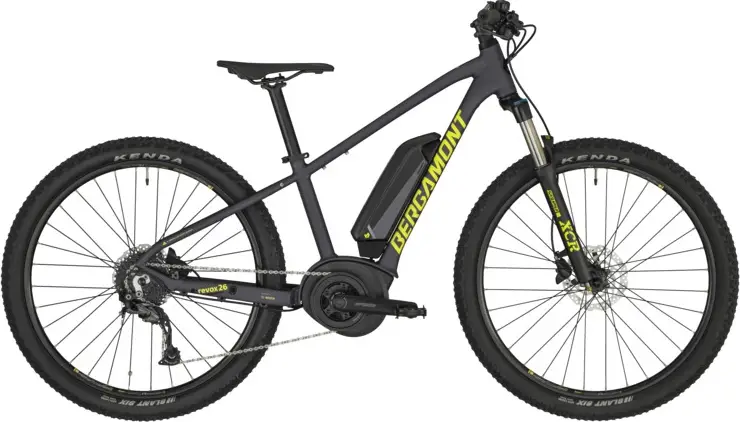

A 26″ aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range

Weight44.8 lbs
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCR Air
Wheels26″ Aluminum
Drivetrain1 × 9
GroupsetAlivio, Altus
MotorBosch 250W 50Nm mid-drive
BatteryBosch 400Wh
BrakesHydraulic Disc
View on bergamont.comLearn about Bergamont
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
E-Revox 3 26
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

E-Revox 3 26

27 mph

Similar Bikes

Highest gear

(descending)

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

26", ultra lite AL-6061 tubing, PowerPack battery

BB Standard: Bosch, Press Fit

Color: Anthracite / Yellow (Matt)

Fork

Suntour XCR32 Air, 100 mm, rebound adjust

Travel: 100mm

Spring Type: Air

Bottom Bracket

Bosch, Isis

Headset

BGM, A-Headset

Stem

Syncros, length: 50 mm

Handlebar

Syncros M15, flatbar, width: 640 mm

Saddle

Syncros

Seatpost

Syncros

Type: Rigid

Pedals

VP

Grips

Syncros MTB

Groupset
Rear Derailleur

Shimano RD-M4000, Shadow

Crank

FSA CK-200, with alloy cover, 36t, 165 mm

Shifters

Shimano SL-M2010, 1x9-speed, rapidfire plus-shifter

Cassette

Shimano CS-HG200-9, 11-34t

Chain

KMC e9S

Brakes

Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm

Type: Hydraulic Disc

Brake Levers

Shimano BL-MT200, hydraulic disc brake

Wheels
Rims

Mach1 650, disc, tubeless ready, width: 23 mm

Spokes

steel, black

Front Hub

Shimano, centerlock, disc, quick release

Rear Hub

Shimano, centerlock, disc, quick release

Tires

Kenda Slant Six, 26x2.35" Tubes: Kenda

Electric Components
Motor

Motor: Bosch Drive Unit Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 400 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5 km/h)

Battery

Motor: Bosch Drive Unit Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 400 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5 km/h)
