TRP Slate EVO, disc hydraulic 4-piston (7" rotors)

SHIMANO Deore, 34 teeth, 170/175 mm cranks

ROCK SHOX Recon Silver RL Remote 29, air, remote lock out, 15 mm thru axle Boost, 1.5" tapered steerer (120 mm)

AUTHOR carbon Toray T700 MTB 29 FSX, air shocker ROCK SHOX SID Luxe Select+B2 190 / 45 mm (rear travel 120 mm)

AUTHOR Helium 15 / Krypton Boost 12, 15 x 110 mm thru front axle, 12 x 148 mm thru rear axle, 32 holes

KIND SHOCK RAGEi, adjustable, travel 100/ 125/150 mm (31.6)

VITTORIA Barzo, foldable, tubeless 29" x 2.40"

Carbon full suspension built to accelerate.
For riders who want speed, control, and confidence in every terrain.

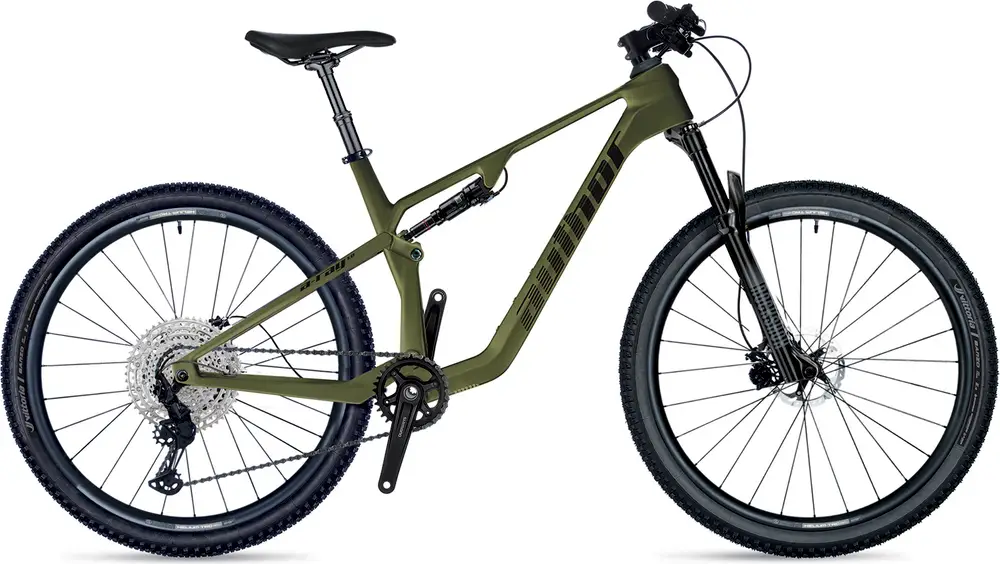

Author A-Ray 1.0 FSX is a modern full-suspension carbon bike designed for fast XC riding as well as more technical trail sections. It combines low weight, efficient power transfer, and trail confidence, making it an ideal choice for uncompromising performance riding.
At its core is a AUTHOR Toray T700 monocoque carbon frame with 120 mm rear travel, paired with a ROCK SHOX SID Luxe Select+B2 shock (190 x 45 mm). This setup delivers sensitive suspension performance, high pedaling efficiency, and confidence even on demanding trails.
Precise handling and front-end comfort are ensured by the ROCK SHOX Recon Silver RL Remote 29 air fork with 120 mm travel and remote lockout.
Thanks to the Boost thru-axle and tapered steerer, it provides excellent stiffness and steering precision.
The SHIMANO SLX / XT drivetrain in a 1 x 12 configuration (10–51) offers a wide gear range and precise shifting, even under load.
This component mix ensures reliability and performance in every situation.
Braking power comes from TRP Slate EVO four-piston hydraulic brakes with large 7" rotors, delivering maximum control even during aggressive riding.
AUTHOR Helium 29 TRC wheels paired with VITTORIA Barzo 29 x 2.40" tubeless-ready tires provide an ideal balance of speed, traction, and stability.
The wider tires enhance confidence in corners and on rough terrain.
Comfort and control are further improved by the KIND SHOCK RAGEi Core dropper post (100/125/150 mm), allowing quick saddle height adjustments depending on the terrain.
Author A-Ray 1.0 FSX is the perfect choice for riders who want a fast XC bike with the added confidence of a full-suspension platform. A machine built for performance, technical riding, and pure trail enjoyment.
Technical specifications for XC and trail
AUTHOR Toray T700 monocoque carbon frame (FSX) – low weight and high stiffness
ROCK SHOX SID Luxe Select+B2 rear shock (120 mm travel) – efficiency and control
ROCK SHOX Recon Silver RL Remote 29 fork (120 mm) – air, lockout
SHIMANO SLX / XT drivetrain, 1 x 12 (10–51) – precise and reliable shifting
TRP Slate EVO brakes (4-piston) – maximum braking performance
AUTHOR Helium 29 TRC wheels – strength and low weight
VITTORIA Barzo 29 x 2.40" tires (tubeless ready) – traction and confidence
KIND SHOCK RAGEi Core dropper post – enhanced control on trails ???>?

Author A-Ray 1.0

29"/175.$2"

29"/19"

29"/205.$2"

A 29″ carbon frame full suspension trail bike with upper mid-range components.

Frame	Carbon
Suspension	Full, 120 / 120mm
Fork	RockShox Recon Silver RL
Wheels	29″ Aluminum
Drivetrain	1 × 12
Groupset	XT, SLX
Brakes	TRP Slate EVO Hydraulic Disc
Seatpost	Dropper

Frame	AUTHOR carbon Toray T700 MTB 29 FSX, air shocker ROCK SHOX SID Luxe Select+B2 190 / 45 mm (rear travel 120 mm) Color: - / Black
Fork	ROCK SHOX Recon Silver RL Remote 29, air, remote lock out, 15 mm thru axle Boost, 1.5" tapered steerer (120 mm) Travel: 120mm Spring Type: Air
Stem	RITCHEY Comp 4-Axis
Handlebar	RITCHEY MTN Trail 2 x 9, 740/780 mm
Saddle	AUTHOR Navigator CR
Seatpost	KIND SHOCK RAGEi, adjustable, travel 100/ 125/150 mm (31.6) Type: Dropper

Rear Derailleur	SHIMANO XT
Crank	SHIMANO Deore, 34 teeth, 170/175 mm cranks
Shifters	SHIMANO SLX (12)
Cassette	SHIMANO CS-M6100-12, 10-51 teeth (12)
Chain	KMC X12
Brakes	TRP Slate EVO, disc hydraulic 4-piston (7" rotors) Type: TRP Slate EVO Hydraulic Disc

Rims	AUTHOR Helium 29 TRC, 32 holes
Spokes	black stainless steel 2.0 mm
Front Hub	AUTHOR Helium 15 / Krypton Boost 12, 15 x 110 mm thru front axle, 12 x 148 mm thru rear axle, 32 holes
Rear Hub	AUTHOR Helium 15 / Krypton Boost 12, 15 x 110 mm thru front axle, 12 x 148 mm thru rear axle, 32 holes
Tires	VITTORIA Barzo, foldable, tubeless 29" x 2.40"
