Elevation ASL

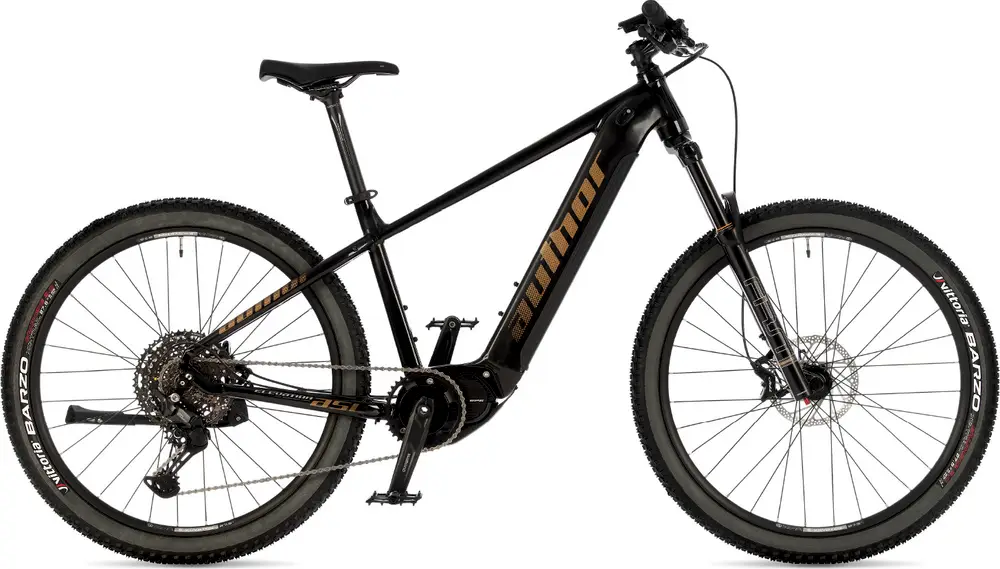

A 27.5″ aluminum frame hardtail trail e-bike with upper mid-range components.
Compare the full range
| Weight | 51.6 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RST F1RST |
| Wheels | 27.5″ Aluminum |
| Groupset | CUES |
| Motor | Shimano 250W 85Nm mid-drive |
| Battery | Shimano 630Wh |
| Brakes | TRP Slate EVO Hydraulic Disc |
5'2" – 5'8"
5'6" – 6'1"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | double butted hydroformed alloy 6061 27.5" (integrated battery) BB Standard: STEPS, Press Fit Color: Black / Gold |
|---|---|
| Fork | RST F1RST 110-15 Air, air, lock out, 15 mm thru axle boost, 1.5" tapered steerer (120 mm) Travel: 120mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Stem | AUTHOR alloy |
| Handlebar | AUTHOR, 15 mm, 700 / 720 mm |
| Saddle | AUTHOR E-Donna |
| Seatpost | AUTHOR alloy (30.9) Type: Rigid |
| Pedals | HT platform |
| Grips | AUTHOR high density foam |
| Rear Derailleur | SHIMANO Cues 6000 |
|---|---|
| Crank | SHIMANO Steps EN-600, 38 teeth, 170 / 175 mm cranks |
| Shifters | SHIMANO Cues 6000 (11) |
| Cassette | SHIMANO CS-LG400-11, 11-50 (11) |
| Chain | KMC eGlide |
| Brakes | TRP Slate EVO, 4-piston disc hydraulic (7" rotors) Type: TRP Slate EVO Hydraulic Disc |
| Rims | AUTHOR E-Krypton 27.5, 32 holes |
|---|---|
| Spokes | black stainless steel 2.2 mm |
| Front Hub | QUANDO, 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes |
| Rear Hub | QUANDO, 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes |
| Tires | VITTORIA Barzo G2.0 aramid 27.5" × 2.25" |
| Motor | SHIMANO Steps EP-600, 250 W |
|---|---|
| Battery | SHIMANO EN806 Li-Ion, 36 V, 17,5 Ah, 630 Wh |
| Display | SHIMANO Steps EN610, LCD |
First added March 9
Last updated October 28
Not listed for 578 days
