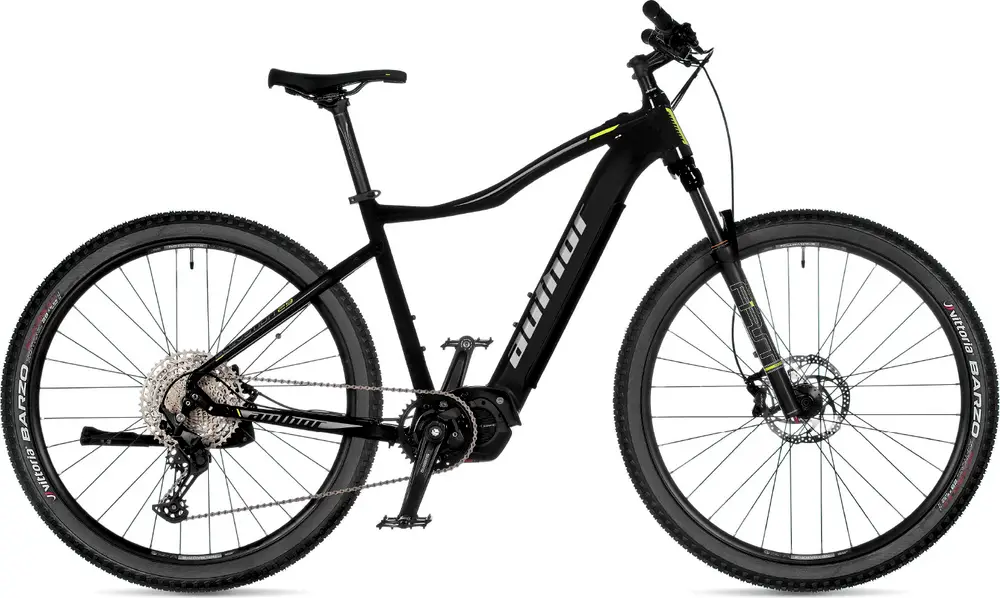

Elevation 29
A 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Compare the full range
| Weight | 48.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | RST F1RST |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Deore |
| Motor | Shimano 250W 60Nm mid-drive |
| Battery | Shimano 504Wh |
| Brakes | TRP Slate T4 Hydraulic Disc |
5'6" – 5'11"
5'9" – 6'3"
6'1" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | double butted hydroformed alloy 6061 29" (integrated battery) BB Standard: STEPS, Press Fit Colors: Black / Yellow-Neon; Blue-Matt / Lime |
|---|---|
| Fork | RST F1RST 110-15 Air TnL air, lock out 15 mm thru axle boost, 1.5" tapered column (100 mm) Travel: 100mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Stem | AUTHOR alloy |
| Handlebar | AUTHOR 15 mm 740 / 760 mm |
| Saddle | AUTHOR E-Mode |
| Seatpost | AUTHOR alloy (30.9) Type: Rigid |
| Pedals | HT platform |
| Grips | AUTHOR Pro Lock |

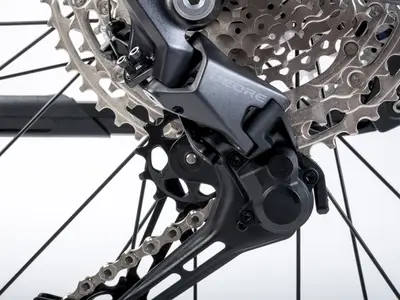

| Rear Derailleur | SHIMANO Deore |
|---|---|

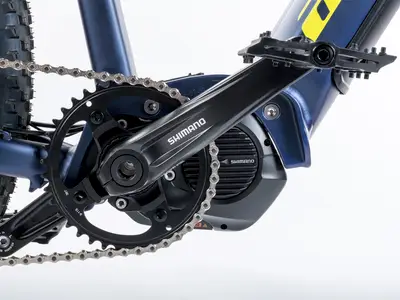

| Crank | SHIMANO Steps E-8000 38 teeth 170 / 175 mm cranks |
| Shifters | SHIMANO Deore (11) |
| Cassette | SHIMANO CS-M5100-11 11-51 (11) |
| Chain | KMC e11T |

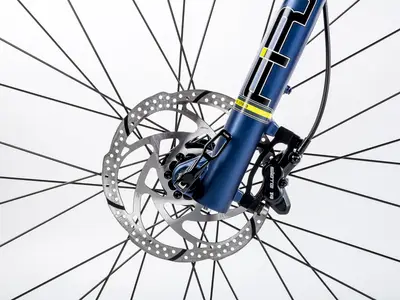

| Brakes | TRP Slate T4 disc hydraulic (7" rotors) Type: TRP Slate T4 Hydraulic Disc |
| Rims | AUTHOR E-Krypton 29 32 holes |
|---|---|
| Spokes | black stainless steel 2.2 mm |
| Front Hub | QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes |
| Rear Hub | QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes |
| Tires | VITTORIA Barzo G2.0 aramid 27.5" × 2.25" |
| Motor | SHIMANO Steps E-7000, 250 W |
|---|---|
| Battery | SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh |
| Display | SHIMANO Steps E-7000, LCD |
