Today’s Deals2020 Author
Elevation ASL 27.5

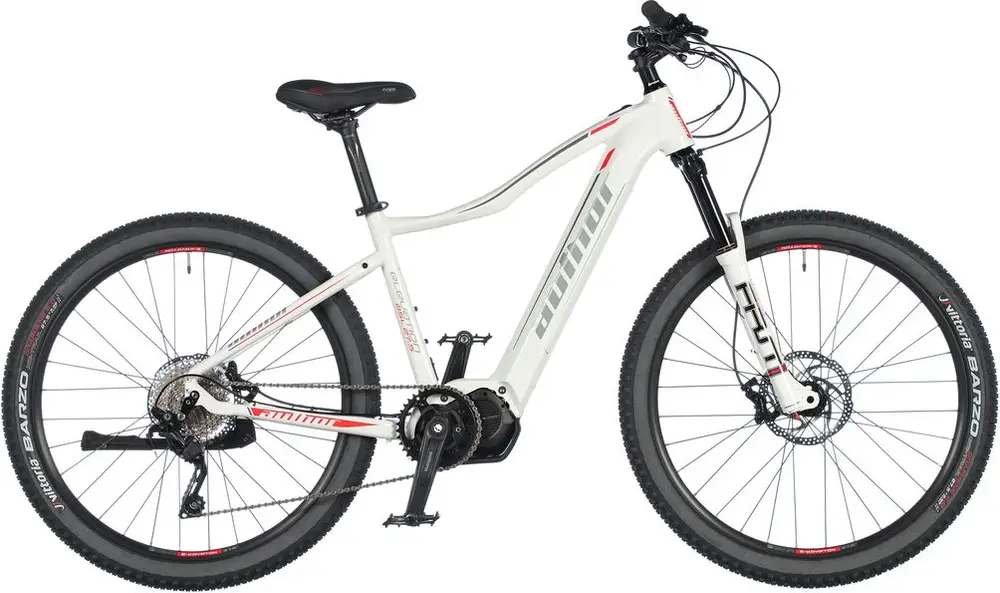

A 27.5″ aluminum frame hardtail trail e-bike with upper mid-range components.
Compare the full range
| Weight | 22.0 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RST F1RST |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Shimano 250W 60Nm mid-drive |
| Battery | Shimano 500Wh |
| Brakes | TRP Hydraulic Disc |
5'2" – 5'8"
5'6" – 6'1"
5'11" – 6'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | double butted hydroformed alloy 6061 27.5" BB Standard: STEPS, Press Fit Color: White / Silver / Red |
|---|---|
| Fork | RST F1RST 27.5 15 TRL air 15 mm thru axle remote lock out (120 mm) Travel: 120mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Stem | AUTHOR alloy |
| Handlebar | AUTHOR 15 mm 680 / 700 mm |
| Saddle | AUTHOR Fenix |
| Seatpost | AUTHOR alloy (30.9) Type: Rigid |
| Pedals | HT platform |
| Grips | AUTHOR Pro Lock |
| Rear Derailleur | SHIMANO Deore |
|---|---|
| Crank | SHIMANO Steps E8000 38 teeth 170 / 175 mm cranks |
| Shifters | SHIMANO Deore (10) |
| Cassette | SHIMANO HG50-10 11-36 (10) |
| Chain | KMC e10T |
| Brakes | TRP Slate 4 disc hydraulic (7" rotors) Type: TRP Hydraulic Disc |
| Rims | AUTHOR E-Krypton 27.5 32 holes |
|---|---|
| Spokes | stainless steel hi-ten 2.2 mm black |
| Front Hub | AUTHOR Helium 15 / Xenon 12 15 × 100 mm thru front axle 12 × 142 mm thru rear axle 32 holes |
| Rear Hub | AUTHOR Helium 15 / Xenon 12 15 × 100 mm thru front axle 12 × 142 mm thru rear axle 32 holes |
| Tires | VITTORIA Barzo G2.0 kevlar 27.5" × 2.25" |
| Motor | SHIMANO Steps DUE-7000, 250 W |
|---|---|
| Battery | SHIMANO BT-E8035 Li-lon, 36 V, 14 Ah, 500 Wh |
| Display | LCD SC-E7000 |
First added November 2
Last updated November 8
Not listed for 1,298 days
