Today’s Deals2020 Airdrop

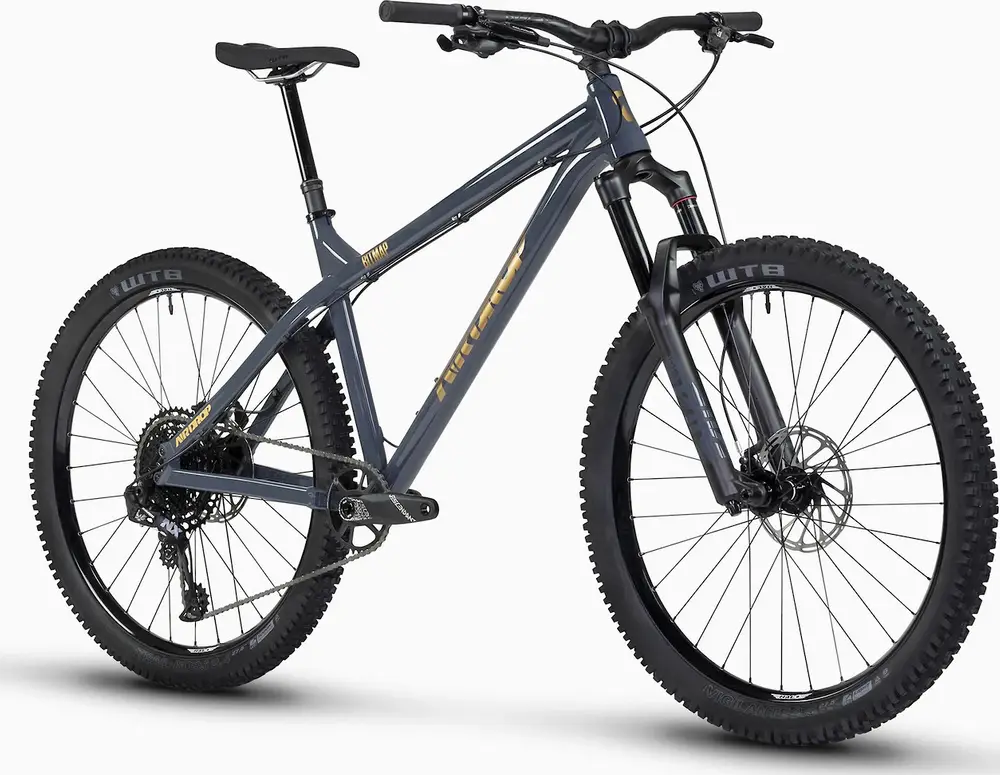

Bitmap Luxe
A 27.5″ aluminum frame hardtail trail bike with high-end components.
Compare the full range
| Weight | 28.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 140mm |
| Fork | RockShox Pike Select |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle, Truvativ Descendant |
| Brakes | SRAM Guide R Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jan 2019 · Thomas Corfield
Designed in Sheffield England, the Airdrop is one of only a few frame builders still making hardcore hardtails in aluminium. The Bitmap is their ‘Hardtail Hooligan’, a frame clearly designed to ride hard and fast in the best British tradition. This bike is part of a group test: The best hardcore hardtail you can buy […]
Dec 2018 · Jonny Ashelford
The back end is short enough to be playful, but long enough to keep things stable at speed and over rough, chattery rocks and roots, while the roomy reach puts you right in the middle of the bike on descents, rather than leaving you hanging off the back for dear life.. .
| Frame | Aluminum BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | RockShox Pike Select, Charger damper, 46mm offset Travel: 140mm Spring Type: Air |
| Shock | N/A |
| Bottom Bracket | SRAM DUB, MTB73, 73mm BSA30 threaded |
| Headset | Cane Creek 40, ZS44 upper, ZS56 lower |
| Stem | Truvativ Descendant, 35mm bar clamp, 40mm length |
| Handlebar | Truvativ Descendant, 35mm clamp diameter, 800mm width, 20mm rise |
| Saddle | WTB Volt Race, custom, black |
| Seatpost | OneUp Dropper, MMX remote lever, 150mm drop Type: Dropper |
| Pedals | N/A |
| Grips | Burgtec Bartender |
| Rear Derailleur | SRAM NX Eagle, 12-speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Truvativ Descendant 6K Eagle DUB, 170mm length |
| Shifters | SRAM NX Eagle, 12-speed |
| Cassette | SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth |
| Chain | SRAM NX Eagle, 12-speed |
| Chain Guide | N/A |
| Brakes | SRAM Guide R, 4-piston, SRAM CenterLine 180mm rotors Type: SRAM Guide R Hydraulic Disc |
| Brake Levers | SRAM Guide R |
| Rims | Halo Ridgeline wheelset, 35mm width; set up tubeless with WTB rim tape, tubeless valves, and Halo sealant |
|---|---|
| Spokes | Halo Ridgeline wheelset |
| Front Hub | Halo Ridgeline wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver |
| Rear Hub | Halo Ridgeline wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver |
| Tires | Front: WTB Vigilante, High Grip, Slashguard, tubeless, 27.5" x 2.5", Rear: WTB Trail Boss, Fast Rolling, Tough casing, tubeless, 27.5" x 2.4" |
First added May 14
Last updated May 14
Not listed for 1,847 days
