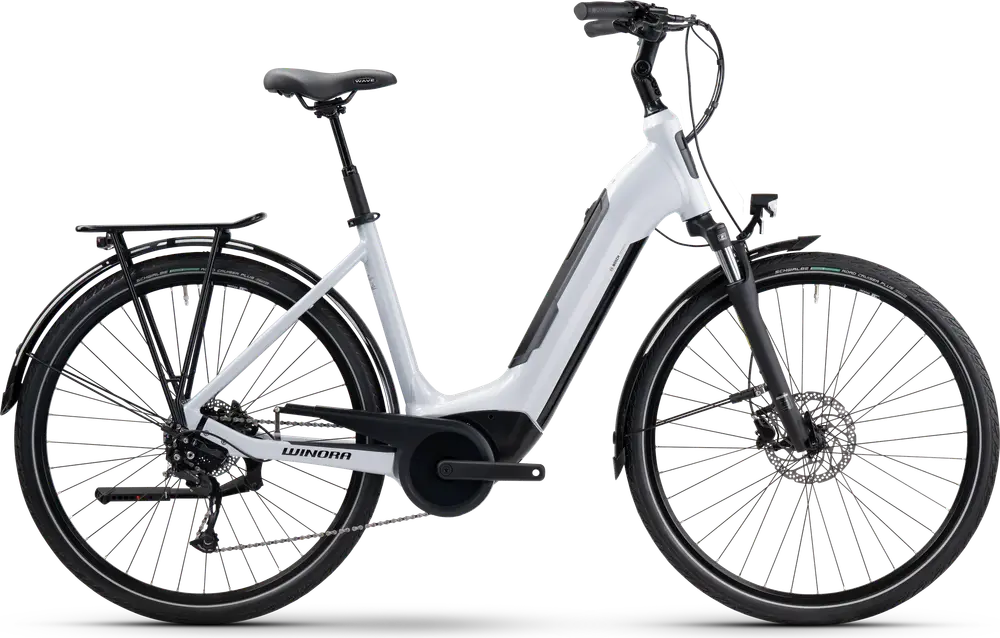

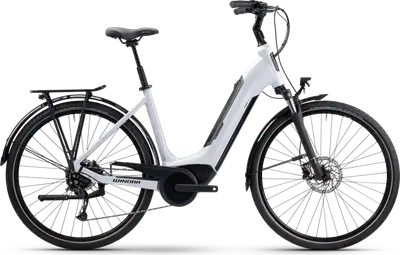

Today’s Deals2025 Winora
Tria X9
A 29″ aluminum frame commuter e-bike with mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€2,999| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 60mm |
| Fork | RST VOLANT |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | CUES |
| Motor | Bosch 600W 75Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Tria model range
View Comparison153cm – 164cm
162cm – 171cm
169cm – 178cm
176cm – 184cm
182cm – 193cm
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | aluminium 6061, disc brake Post Mount Colors: Ice; Peppermint |
|---|---|
| Fork | RST Volant, Travel: 60mm Travel: 60mm Spring Type: Coil |
| Headset | VP J213PE ID44/55BL |
| Stem | JD Adjustable ST243A-2, Dia. 31.8 mm, L: 85 mm |
| Handlebar | Ergobar, oversize 640 mm |
| Saddle | Selle Royal Wave |
| Seatpost | Satori Harmony LT2, Dia. 31.6 mm, L: 350 mm Type: Rigid |
| Pedals | VP Components VPE-461 MTB Alloy Pedal w/ Reflector |
| Grips | Ghost GND51 Velo Comfort Grip VLG-1752D2 |
| Rear Derailleur | Shimano Cues U3020, 9-speed |
|---|---|
| Crank | Samox EC37A-F9-BNI Crankarm 170 mm + Chainring |
| Shifters | Shimano CUES SL-U4000-9R, Rapidfire+, Trigger shifter |
| Cassette | Shimano Cues CS-LG300-9, HG |
| Chain | Shimano CN-LG500 9-11s, LINKGLIDE |
| Chain Guide | SKS Chainbow-E 38T |
| Brakes | Front: Shimano BR-MT200, 2 pistons, resin pad, 180 mm, Rear: Shimano BR-MT200, 2 pistons, resin pad, 160 mm Type: Shimano Hydraulic Disc |
| Rims | Ryde Eco21, eyed, double-walled rim, aluminium |
|---|---|
| Front Hub | Shimano HB-QC300 QR, 9 x 100 mm, Centerlock |
| Rear Hub | Shimano HB-QC300 QR, 10 x 135 mm, Centerlock |
| Tires | XLC Traverse CTC, 50-622 |
| Motor | Bosch Performance Line Smart System, 600W, 75Nm, 25km/h |
|---|---|
| Battery | Bosch PowerTube 500Wh |
| Display | Bosch Intuvia 100 + LED Remote |
| Charger | Bosch Charger 4A 220-240V |
| Lights | Front: Herrmans MR5, 6-12V, Rear: AXA Juno E-Bike, 6-12V |
|---|---|
| Fenders | EuroFender Tempo 28" 58 mm |

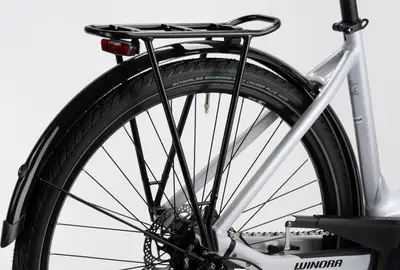

| Racks | Winora MIK system carrier |
| Lock | Abus Ring lock upgradable over Plus System |
First added 19 May
Last updated 13 June
