Today’s Deals2026 Ari

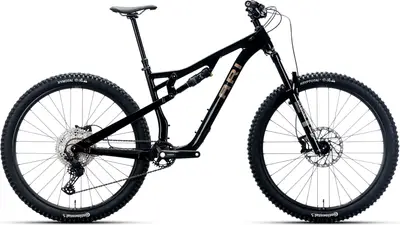

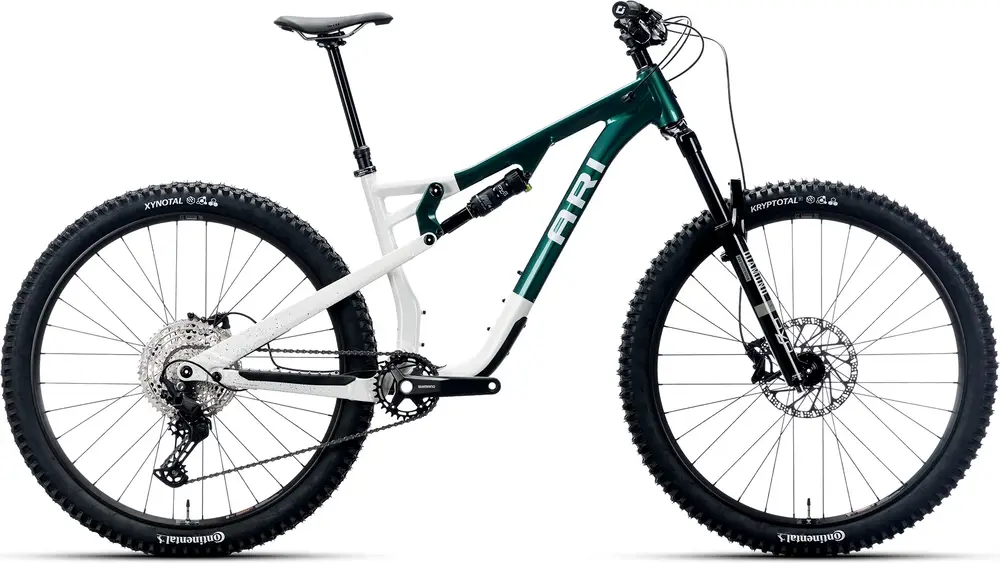

Cascade Peak Elite
A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
2 799 $US(2 442 €)| Weight | 3,3 kg (frame) |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 135 / 140mm |
| Fork | DVO Diamond |
| Shock | DVO |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Brakes | TRP Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Cascade Peak model range
View Comparison158cm – 171cm
168cm – 180cm
178cm – 189cm
186cm – 199cm
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
août 2024
The Ari Cascade Peak, with it's progressive suspension, responsive handling, and low(ish) weight was a collective favorite in our ...
mai 2024 · Robert Johnston
The Cascade Peak sits in Ari’s mountain bike range in the lower price point zone, without sacrificing on features and capability. Learn More.
| Frame | Ari Cascade Peak Full Suspension, Alloy, 135mm travel. UDH derailleur hanger. ISCG-05 mounts. BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Colors: Green / White; Black |
|---|---|
| Fork | DVO Diamond D3 36SL, 29, 140mm travel, Boost 15x110 , 44mm offset, tapered steerer - Grey Travel: 140mm |
| Shock | DVO Opal R, 210x50, Custom Tuned Travel: 135mm |
| Bottom Bracket | Shimano BB-M5T501, English |
| Headset | FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered |
| Stem | Ari Charger CNC 35, sizes vary depending on custom fit |
| Handlebar | Ari FRD Charger 35, alloy, 35mm clamp, 780mm wide, 25mm riser, 9 degree back-sweep, 5 degree upsweep |
| Saddle | WTB Solano SL, Medium Steel |
| Seatpost | TransX JD-YSI05J, 150-200mm, w/ 30mm Travel Adj. Dropper- customized sizing through Ari Custom Setup Type: Dropper |
| Pedals | Available Separately |
| Rear Derailleur | Shimano Deore M6200, 12-Speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Shimano FC-MT520, 12-Speed |
| Shifters | Shimano Deore M6200, 12-Speed |
| Cassette | Shimano CS-M6200, 10-51T, 12-Speed |
| Chain | Shimano CN-M6100 12-Speed |
| Brakes | TRP EVO Comp, 4-Piston, 2.3 203/203mm F/R rotors Type: TRP Hydraulic Disc |
| Rims | WTB Sportterra i30, 29, TCS Tubeless Ready, 32h |
|---|---|
| Spokes | Stainless, black, with brass nipple |
| Front Hub | WTB Frequency Sealed Bearing Disc, 110x15mm thru axle, 32 hole, 6 bolt |
| Rear Hub | WTB Frequency Sealed Bearing Disc, 148x12mm thru axle, 32 hole, 6 bolt, MicroSpline |
| Tires | Front: Continental Kryptotal F Enduro Soft, 29x2.40, Rear: Continental Xynotal Enduro Soft, 29x2.4 |
First added 2 mai
Last updated 20 juin
