Released October 31
Photo Credit: Evil Bikes
Builds
4
Wheels
27.5″, 29″ / 27.5″
Suspension
Full, 168 / 180mm
Frame Material
Carbon
The Insurgent LS is a rolling battering ram, pushing more travel than any current Evil model with a 168mm rear travel and 180mm up front. No matter how battered the bike park becomes, the Insurgent serves up rippin’ laps and dusty grins.
So What's New?
New "Space Bot" colorway.

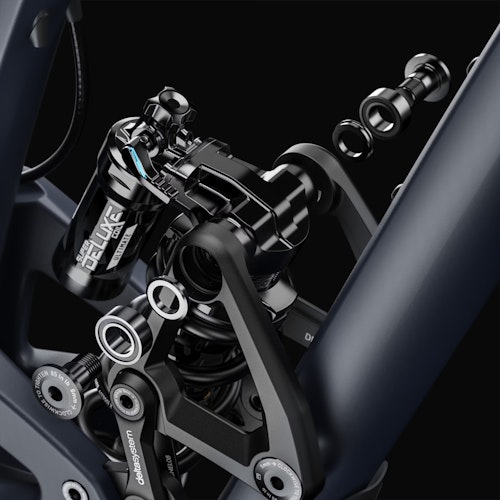

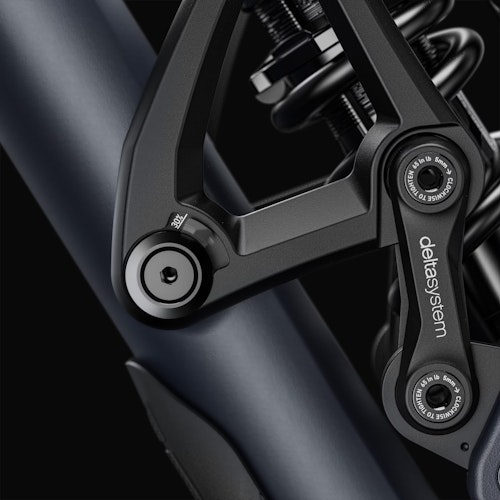

Updated linkage hardware means no more lost spacers.

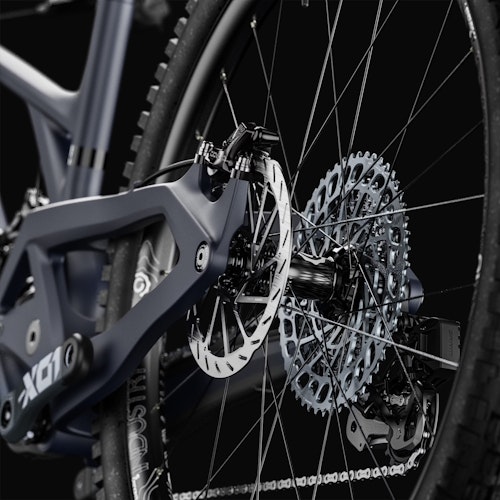

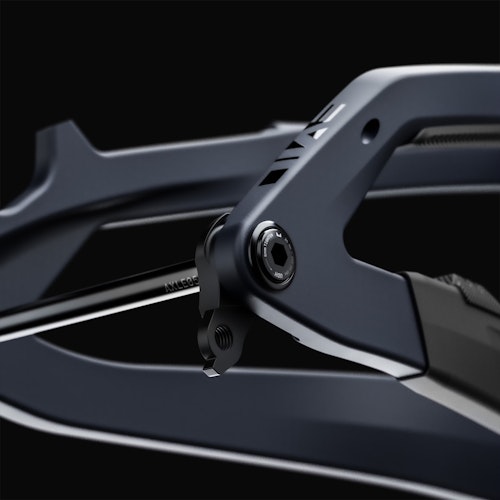

SRAM Universal Derailleur Hanger to future-proof your ride.
Annual linkage bearing replacement.

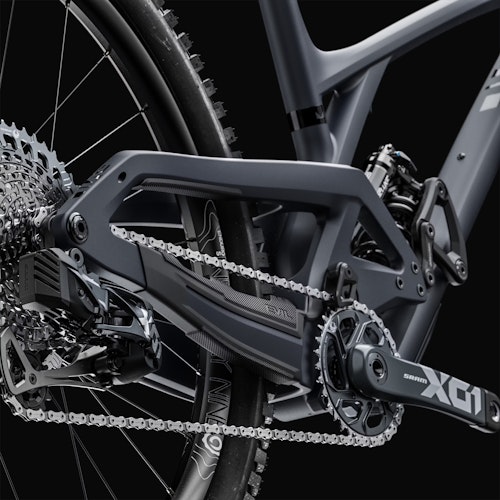

SRAM GX mechanical & X01 AXS completes available.
Loophole wheel upgrades available.
The highs and lows of this model family
Spec Level | ||||
---|---|---|---|---|

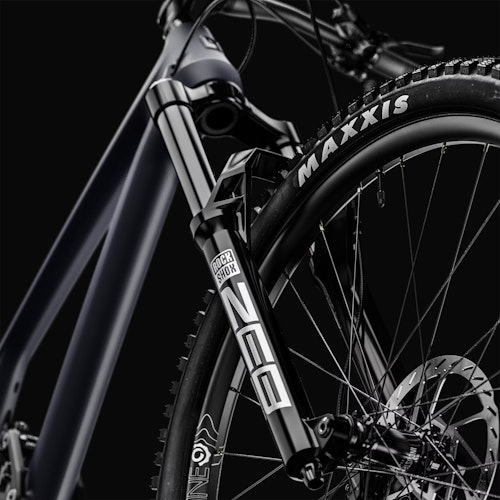

Fork | RockShox ZEB Ultimate | RockShox ZEB Ultimate | RockShox ZEB Ultimate | RockShox ZEB Ultimate |
Wheel Size | 27.5″ | 29″ / 27.5″ | 27.5″ | 29″ / 27.5″ |
Groupset | GX Eagle | GX Eagle | X01 Eagle AXS | X01 Eagle AXS |
Drivetrain | 1 × 12 | 1 × 12 | 1 × 12 Electronic | 1 × 12 Electronic |
Travel | 168mm rear, 180mm front | 168mm rear, 170mm front | 168mm rear, 180mm front | 168mm rear, 170mm front |
Wheels | 27.5″ | 27.5″ | 27.5″ | 27.5″ |
---|---|---|---|---|
Stack | 619 | 628 | 639 | 650 |
Reach | 463 | 480 | 499 | 519 |
Stack/Reach Ratio | 1.34 | 1.31 | 1.28 | 1.25 |
Top Tube Length | 597 | 614 | 635 | 657 |
Seat Tube Length | 390 | 425 | 460 | 495 |
Seat Tube Angle | 78.2 | 78.2 | 78.2 | 78.2 |
Head Tube Length | 104 | 114 | 127 | 139 |
Head Tube Angle | 65.3 | 65.3 | 65.3 | 65.3 |
BB Drop | 8 | 8 | 8 | 8 |
BB Height | 349 | 349 | 349 | 349 |
Front Center | 781 | 803 | 828 | 853 |
Chainstay Length | 437 | 437 | 437 | 437 |
Wheelbase | 1,218 | 1,240 | 1,265 | 1,290 |
Rake | 43 | 44 | 45 | 45 |
Trail | 116 | 116 | 116 | 116 |
Standover Height | 699 | 710 | 718 | 731 |
🐐 Measurements listed in millimeters and degrees
