VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes

MERIDA Expert CW, 17mm inner width, 35mm height

MERIDA Expert CW, Aero shape, 15mm setback, Carbon

Continental Grand Sport Race, 700x25C, fold

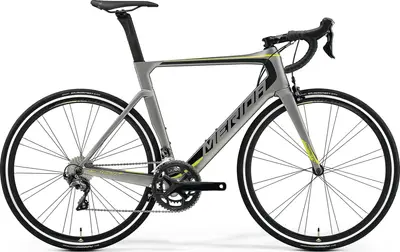

Merida REACTO 5000

The Merida Reacto is celebrated for its exceptional speed and aero efficiency, translating every watt into forward momentum with razor-sharp handling and impressive comfort for an aero bike. It offers a stiff, responsive ride with significant speed advantages over segments, though some models may suffer from a firm ride and minor component issues. The Reacto stands out for its thoughtful design, including a well-integrated frame and smart cable routing, making it a strong contender in the aero bike category.

RRP
Dove comprare	— (1 €) At
Categoria	Aero
Peso	8,6 kg

Telaio
	Carbonio
Ruote	Alluminio
Dimensioni della ruota	700c
	Shimano 105 Cerchio


	Ultegra
Trasmissione	2 × 11
Sito del Marchio	merida-bikes.com

Telaio	REACTO CF2
Forcella	MERIDA REACTO CF2
Auricolare	MERIDA REACTO neck, 2191026779
Manubrio	MERIDA Expert CW
Sella	MERIDA Comp SL
Reggisella	MERIDA Expert CW, Aero shape, 15mm setback, Carbon Tipo: Rigido

Deragliatore posteriore	Shimano Ultegra, GS
Deragliatore anteriore	Shimano Ultegra
Manovella	FSA Gossamer Pro, 52-36 teeth
Leve del cambio	Shimano Ultegra
Cassetta	Shimano CS-R7000, 11-30 teeth, 11 speed
Catena	KMC X11
Freni	Shimano 105-direct Tipo: Shimano 105 Cerchio
Leve freno	Shimano Ultegra

Cerchi	MERIDA Expert CW, 17mm inner width, 35mm height
Raggi	Double Butted Black stainless
Mozzo anteriore	VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Mozzo posteriore	VP M700F, 100x9mm width, 24 spoke holes / VP M700R, 130x9mm width, 28 spoke holes
Pneumatici	Continental Grand Sport Race, 700x25C, fold
