Graphite / Black

Shimano MT200, 2-piston brakes, rotors 180mm

Prowheel Charm 2-pcs crankset with external BB bearings, 175mm(XL,L)/170mm(M,S)

X-Fusion Mig 29", Boost, travel 130mm, axle 15mm, tapered

OEM 135mm, diamond pattern, with lock ring

Dartmoor Raptor 29", 32H, F/V, tubeless ready

Microshift Advent Trail M9195-R, 9–speed

Front: Vee Tire Crown Gem 29x2.3, Wire, MPC, Rear: Vee Tire Crown Gem 29x2.3, Wire, MPC

One of the most versatile bikes in the Dartmoor lineup. A perfect choice for riders looking for everything best in mountain biking, like downhills, uphills, trail discovering, jumps, and even pump track or cornering. Bigger 29-inch wheels will be a better choice for riders choosing longer trips and trail riding. Primals in Intro versions are dedicated to riders at the beginning of their adventure with MTB, and help to save some money for the helmet and a ticket for the first trip!
MAIN FEATURES
A new version of a Primal frame with redesigned tubes, updated geometry, and SRAM UDH hanger
New X-Fusion MIG 29 coil fork with compression and rebound adjustment
Bombproof Microshift Advent derailleur and 11-42T cassette
New, tubeless-ready Raptor rims with 30mm inner width
31.8mm cockpit with our new, compact Viper stem
Dartmoor Vibe pedals

Peso	15,0 kg
Telaio	Alluminio
Sospensioni	Hardtail, 130mm
Forcella	X-Fusion MIG
Ruote	29″ Alluminio
Trasmissione	1 × 9
Gruppo	microSHIFT Advent
Freni	Shimano Disco idraulici

Telaio	matt Graphite/Black, AL 6061-T6 Supporto standard: UDH Colore: Graphite / Black
Forcella	X-Fusion Mig 29", Boost, travel 130mm, axle 15mm, tapered Escursione: 130mm
Stem	Dartmoor Viper, Ø31.8mm
Manubrio	Dartmoor Tornado Low 780mm, Ø31.8mm
Sella	Dartmoor Ferns OEM
Reggisella	alu 6061, 30.9x400mm (XL,L)/350mm(M,S) Tipo: Rigido
Pedali	Dartmoor Vibe
Manopole	OEM 135mm, diamond pattern, with lock ring

Deragliatore posteriore	Microshift Advent M619M 1X9
Manovella	Prowheel Charm 2-pcs crankset with external BB bearings, 175mm(XL,L)/170mm(M,S)
Leve del cambio	Microshift Advent Trail M9195-R, 9–speed
Cassetta	Microshift Advent H093, 11-42T
Catena	KMC Z9
Freni	Shimano MT200, 2-piston brakes, rotors 180mm Tipo: Shimano Disco idraulici

Cerchi	Dartmoor Raptor 29", 32H, F/V, tubeless ready
Mozzo anteriore	Dartmoor Reel Boost 110x15mm, 32H
Mozzo posteriore	Dartmoor Reel Boost 148x12mm, 32H
Pneumatici	Front: Vee Tire Crown Gem 29x2.3, Wire, MPC, Rear: Vee Tire Crown Gem 29x2.3, Wire, MPC

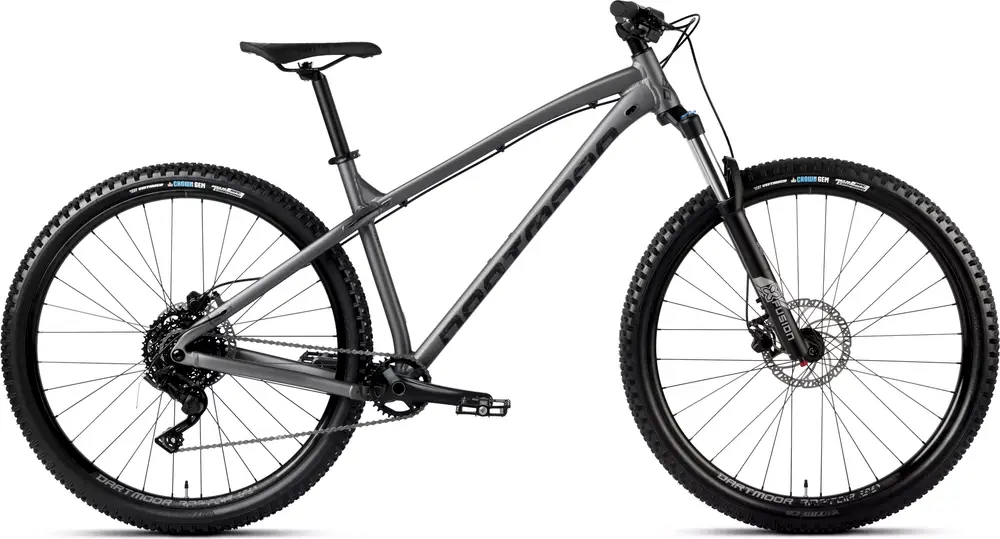

2026 DartmoorPRIMAL INTRO 29

2026 Dartmoor
PRIMAL INTRO 29
