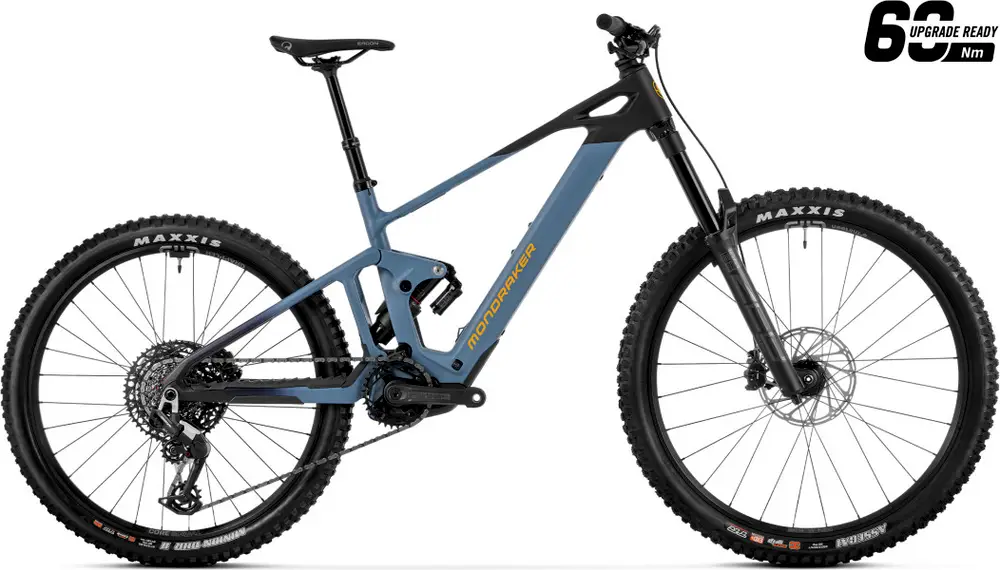

2026 Mondraker

DUNE R

Peso20,3 kg
MarcoCarbón
Suspensióncompleto, 165 / 170mm
TenedorRockShox ZEB Select
Amortiguador traseroRockShox Vivid
Ruedas29″ / 27.5″ Aluminio
transmisión1 × 12
grupoSRAM, e*thirteen
MotorBosch 600W 55Nm mid-drive
BateríaBosch 400Wh
FrenosSRAM Disco Hidráulico
tija de sillínCuentagotas
Ver en mondraker.comMás información sobre Mondraker
Donde comprar
Bicicletas Similares
Comparación superior
Perspectivas
Sensación de conducción

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
DUNE R
Other Enduro bikes
Dimensionamiento
SM

158cm – 171cm

MD

168cm – 180cm

LG

178cm – 189cm

XL

186cm – 199cm

🐐 Estimated

Notas de ajuste del ciclista
  • 177cm, tamaño MD, Solo bien
Reseñas
MBR
The Mondraker Dune RR has brilliant suspension and a light frame, compromised by a saddle that constantly gets in the way - MBR

dic 2024 · Danny Milner

Mondraker bills its Dune e-bike as the natural evolution of enduro. And the Spanish brand has a point. With many enduro race bikes tipping the scales at around 16kg, who has the time or the fitness to slog up and down a hillside on one? Except maybe pro EDR racers. Especially when the best lightweight electric bikes only add a few extra kilos and effectively halve the time it takes to get back to the top for another run. – Short of time? Click here to skip to the verdict – Sounds like a no-brainer, but how does the Mondraker Dune RR stack up against one of its main rivals – the YT Decoy SN? I got hold of both bikes and put them head-to-head to find out which one has the X-factor. – Read my head-to-head test against the YT Decoy SN Core 4 e-enduro bike here – Mondraker Dune RR need to know Lightweight enduro e-bike with Bosch SX motor Carbon frame delivers 165mm travel 400Wh internal battery and optional 250Wh range extender Up to 600W assistance at high revs Under 20Kg in size large Ohlins suspension with 170mm travel fork MX wheels Motor and battery To give the Dune enough pace on the climbs while retaining the mobility and excitement of a conventional enduro bike, Mondraker has opted for the Bosch SX motor. It’s a drive unit that encourages a high cadence, preventing the temptation to sit back and rely on the engine entirely. Peak power only arrives at about 120rpm, which is extremely difficult to sustain. It’s also impossible to achieve on steep, technical climbs even with a wide-range cassette, so the motor doesn’t have the same rock-crawling ability of its stablemate – the CX. Since most enduro trails tend to be accessed by gradual fireroad climbs, this isn’t a big deal, but it’s worth noting if you like to take on hillclimb challenges. On the other hand, the motor keeps on giving the faster you pedal, and it feels strong once up to speed. Riding back-to-back with the Fazua Ride 60 on the YT Decoy, I immediately noticed how much more support the Bosch SX unit gave me. And the gap only grew as I became more fatigued. To help encourage those revs, I’d like to see Mondraker switch the stock 170mm cranks for shorter versions. You don’t get something for nothing, so given that the Bosch unit feels more powerful, and uses a smaller capacity 400Wh battery than the Fazua, it stands to reason that there’s an impact on the range. In our recent SL E-Bike of the Year test, using exactly the same tyres, on the same trails, in full power mode, the Bosch SX managed 860m climbing, while the Fazua racked up 1,200m. Clearly, if range is your top priority then the Fazua is your best opton. But the scales tilt back in favour of the Mondraker if you factor in the optional range extender, since Fazua doesn’t offer one (yet). There’s …Continue reading »

Máximos
  • • Supple, grippy suspension

  • • Frame has just the right level of stiffness

  • • Bosch SX motor has decent power and rewards effort

Mínimos
  • • Dropper post insertion is poor and seat gets in the way

  • • Bosch motor rattles when coasting

  • • BB could be lower

  • • Headset routed cables are a hassle

Leer reseña

BikeRadar
Mondraker Dune XR first ride review

abr 2024 · Nick Clark

Long travel meets lightweight motor with Mondraker's new Dune XR

Máximos
  • Punchy motor

  • Well balanced geometry

  • Confidence inspiring on descents

  • Supple yet poppy nature

Mínimos
  • Pricey

  • Derailleur susceptible to impacts

  • Headset cable routing won t be for all

Leer reseña

EMTB Forums
The Mondraker Dune is back for 2024

abr 2024 · Knut Nes

Dune, that’s a cool name. And just like the movie, the Mondraker Dune is out in it’s second iteration. The first Mondraker Dune was an enduro pedalbike released in 2009. Mondraker already have a long travel emtb, the Level. But they brought back...

Leer reseña

Geometría
Especificaciones
Construir
Marco

Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Estándar de suspensiónYA

Tenedor

RockShox ZEB Select Charger RC 29, 170mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload

Viajar170mm

Tipo muelleAire

Amortiguador trasero

RockShox Vivid Base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Viajar165mm

Auriculares

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Provenir

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Manillar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Sillín

Ergon Enduro SPS20

tija de sillín

X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, L size: 469x170mm,XL size: 521x190mm

TipoCuentagotas

Puños

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

grupo
Cambio trasero

SRAM 90 Eagle, T-Type, 12s

Manivela

E.13 Helix Core E*Spec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55

cambiadores

SRAM Trigger 70, 12s, T-Type Actuation

Cadena

SRAM 70 T-Type, 12s Flattop, PowerLock

Frenos

Front: SRAM Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

TipoSRAM Disco Hidráulico

Las palancas de freno

SRAM Maven Base, SwingLink and lever pivot bushings, tools-free reach adjust

Ruedas
llantas

e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear

radios

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Buje delantero

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Buje trasero

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

Llantas

Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

Componentes eléctricos
Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Batería

Bosch Compact Powertube 400Wh

Pantalla

Kiox 400C / Bosch Mini Remote

Notas del ciclista
