RRP | $2,599 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Weight | 26.0 kg | |
Frame | Aluminum | |
| Suntour XCM | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Tektro Dorado Hydraulic Disc | ||
| Bafang 500W 65Nm hub-drive | ||
| 672Wh | ||
| X5 | ||
Drivetrain | 1 × 9 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

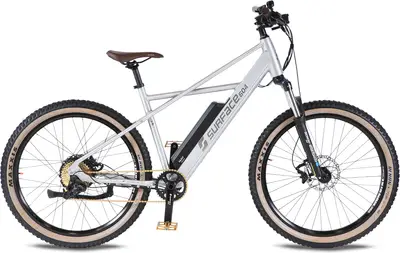

Summary | The Surface 604 Quad is a 27.5″ aluminum frame hardtail crosscountry e-bike with mid-range components. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy | |
|---|---|---|
Fork | SR Suntour XCM 32 Spring Suspension, 100mm Travel, Compression Adjust with Lockout, Preload Adjust, 100mm Hub Spacing, 32mm Steel Stanchions, 15mm Thru-Axle with 6mm Hex Bolt Travel: 100mm Spring Type: Coil | |
Headset | Surface 604 Branded, Integrated, Sealed Cartridge, Straight 1-1/8" | |
Stem | Ergotec 6+, Aluminum Alloy, 0° Rise, 50mm Length, Base Height, 15mm Tapered Spacer, Two 10mm Spacers, One 5mm Spacer, 31.8mm Clamp Diameter | |
Handlebar | Aluminum Alloy, 40mm Low-Rise, 20mm Backsweep, 720mm Width | |
Saddle | Velo, Active, Brown | |
Seatpost | Aluminum Alloy with Forged Single-Bolt Clamp, 4mm Hex Bolt for Seat Clamp (30.4mm to 27.2mm Shim and SR Suntour NCX Suspension Seatpost Shown on Demo Bike) Type: Suspension | |
Pedals | Aluminum Alloy Platform, Wide with Integrated Pins, Gold with Silver Accents (They May Switch to Black) | |
Grips | Stitched Faux Leather, Ergonomic, Black, Locking |
Crank | Samox AF-38, Forged Alloy, 170mm Length, Sealed Cartridge Bearings, Hollow Spindle, STYX 7075 CNC 38 Tooth Narrow-Wide Steel Chainring | |
|---|---|---|
Shifters | SRAM X5 or Shimano Alivio Triggers on Right | |
Cassette | 9 Speed 1x9 SRAM X5 or Shimano Alivio Derailleur, ZTTO 9S Cassette 11-36 Tooth (Nickel Chrome Gold) | |
Brakes | Tektro Dorado Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Three-Finger Tektro Levers with Motor Inhibitors and Adjustable Reach Type: Tektro Dorado Hydraulic Disc |
Rims | Double Wall, 6061 Aluminum Alloy, 35mm Outer Width, 36 Hole, Black | |
|---|---|---|
Spokes | Stainless Steel, 12 Gauge Back, 13 Gauge Front, Black | |
Tires | Maxxis Rekon+, 27.5" x 2.80" (71-584) |
Motor | Weight: 7.7 lbs (3.49 kg), Brand: Bafang RM G360.500.DC, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 750 watts, Torque: 65 Newton meters | |
|---|---|---|
Battery | Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion | |
Display | Surface 604 Branded, Fixed, Adjustable Angle, 3.5" Color, Backlit LCD, USB Type A Charging Port |
