Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison

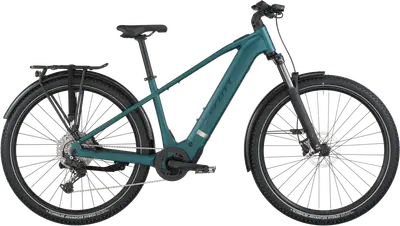

    Axis 302025 Scott
    Recommended
    RRP
    £3,199
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		28.2 kg
    4.4
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Bosch 600W 63Nm mid-drive
    		540Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    scott-sports.com

    Summary
    		The Scott Axis 30 is a 29″ aluminum frame hardtail trail e-bike with mid-range components.

    Ask 99 Spokes

    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Axis 30
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    45 km/h

    Axis 30

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Axis 302025 Scott
    Frame

    Alloy S-XL=29", 6061 Alloy custom butted tubing; Side extraction battery; UDH Interface, 12x148mm with 52mm Chainline

    Hanger Standard: UDH

    Color: Cypress Green

    Fork

    SR Suntour XCM34 Coil, Tapered, 15x110 TA, 120mm Travel

    Travel: 120mm

    Spring Type: Coil

    Headset

    Acros, 1.5"- 1.5"; semi integ. OD 50/61mm, ID 44/55mm

    Stem

    Syncros with front Light mount

    Handlebar

    Syncros 3.0 720mm, 31.8mm, Backsweep 9°, 12mm rise; Syncros Lock On Grip

    Saddle

    Syncros Capilano

    Seatpost

    Syncros 3.0, 31.6mm

    Type: Rigid

    Pedals

    VP VPE-506

    Groupset
    Rear Derailleur

    Shimano CUES RD-U6000GS 10 Speed

    Crank

    FSA CK-220 165mm

    Shifters

    Shimano SL-U600010RC

    Cassette

    Shimano CS-LG40010 11-48T 10 Speed

    Chain

    Shimano LG500

    Brakes

    Shimano BR-MT200 Disc Brakes

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Syncros X18 Disc

    Spokes

    Stainless Black

    Front Hub

    Shimano HBTC50015BB, 15x110mm

    Rear Hub

    Shimano FHTC500HMBB, 148x12mm

    Tires

    Front: Schwalbe Advancer 60-622 Wired, Rear: Schwalbe Advancer 60-622 Wired

    Disc Rotors

    Front: SM-RT30 CL 180mm, Rear: RT-EM300 CL 180mm

    Electric Components
    Motor

    Bosch Performance Line (BDU346Y); EU: 25kmh

    Battery

    PowerTube 540Wh

    Display

    Bosch Purion 200

    Charger

    2A Charger

    Accessories
    Lights

    Front Lezyne Hecto E65; Rear Super Bright Lezyne Light

    Racks

    Racktime Micro Rack SnapIt 2.0 27KG
