Today’s Deals2022 Canyon

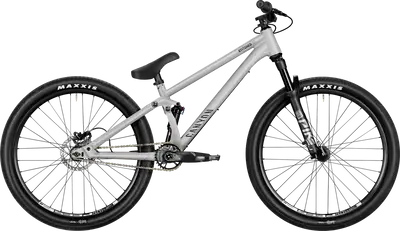

Stitched 720
A 26″ aluminum frame full suspension dirt jump bike with high-end components.
Compare the full range
Manufacturer Price
€1,999| Weight | 12.7 kg |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 100 / 100mm |
| Fork | RockShox Pike DJ |
| Shock | RockShox Monarch RT |
| Wheels | 26″ Aluminum |
| Drivetrain | Single-speed |
| Groupset | Truvativ Descendant |
| Brakes | SRAM Level TL Hydraulic Disc |
140cm – 200cm
Oct 2021 · Ed Spratt
Canyon has launched its 2022 Stitched range with two hardtails and a full-suspension dirt jump bike.
| Frame | Canyon Stitched, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness, and progressive rear suspension tune for more airtime and harder impacts., Material: Aluminium (AL) BB Standard: BSA, 68mm, Threaded Colors: Storm Grey; Purple Trasher |
|---|---|
| Fork | RockShox Pike DJ, Dirt jump fork., Stanchion diameter: 35 mm., Axle dimensions: 15 x 100 mm., Offset: 40 mm., Crown to axle: 482 mm., Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1 1/4" Travel: 100mm Spring Type: Air |
| Shock | RockShox Monarch RT, Air-sprung shock with two-position compression adjustment (open/lock). Externally tunable rebound. Size: 190 x 51 mm. Travel: 100mm |
| Bottom Bracket | SRAM BSA DUB, SRAM BSA bottom bracket with DUB (Durable Unified Bottom Bracket) technology for optimal power transfer. With sealed cartridge bearings for dependable protection against dirt and moisture. Shell width: 68 / 73 mm., Bottom bracket standard: BSA 73 |
| Stem | Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Clamping diameter: 31,8 mm |
| Handlebar | Canyon G5 Riser Bar, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Canyon Stitched |
| Seatpost | Canyon Stitched, Clamp diameter: 30,9 mm Type: Rigid |
| Pedals | None included |
| Grips | Canyon Stitched, Canyon Stitched grips for direct handling and extra shock absorption. |
| Crank | Truvativ Descendant 6K DUB 30T, Aluminium crankset., Chainring size: 30T., Arm length: 165 mm., Number of chainrings: 1 |
|---|---|
| Chain | KMC Z510HX 1s |
| Brakes | SRAM Level TL, Hydraulic post-mount disc brake with organic pads and 2-piston calliper. Type: SRAM Level TL Hydraulic Disc |
| Rims | DT Swiss 533D | Stitched Hub, Robust 26-inch Canyon aluminium rear wheel. With industrial bearings for enhanced durability., Axle dimensions: 9 x 135 mm, Rotor mount: IS 6-bolt | DT Swiss 533D | Stitched Hub, Robust 26-inch Canyon aluminium front wheel. With industrial bearings for enhanced durability. Axle dimensions: 15 x 100 mm., Rotor mount: IS 6-bolt |
|---|---|
| Tires | MAXXIS DTH 2.3", Latest-generation dirt and street tyres. 26-inch. Low weight, huge grip. Width: 2.3-inch., Width: 2.3" |
| Disc Rotors | SRAM G2 Centerline, Brake rotor with 6-bolt hub interface. Diameter: 160 mm. | SRAM G2 Cleansweep Brake Rotor |
