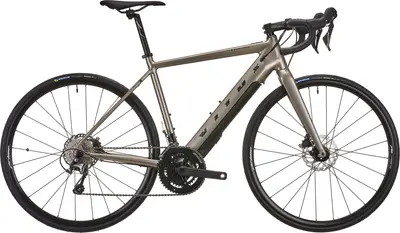

    E-Substance Aluminium E2022 Vitus
    Recommended
    MSRP
    ($4,439)
    Where to Buy
    —
    $1

    At

    Category
    		Gravel, E-Bike
    Weight
    		34.0 lbs
    3.9
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		47c (27.5″) / 42c (700c)
    		Shimano Tiagra Hydraulic Disc
    		Fazua mid-drive
    		Fazua 252Wh
    		Tiagra
    Drivetrain
    		2 × 10
    Brand Site
    Summary
    		The Vitus E-Substance Aluminium E is an aluminum frame gravel e-bike with mid-range components and shimano tiagra hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    E-Substance Aluminium E
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    E-Substance Aluminium E

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    E-Substance Aluminium E2022 Vitus
    Frame

    E-Substance Aluminium - Fazua, 6061-T6 Aluminium, Fazua evation Integration, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rear Rack Mounts, 142 x 12mm Hub Spacing, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

    Tire Clearance: 47c (27.5″) / 42c (700c)

    Color: Champagne

    Fork

    E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts

    Shock

    N/A, N/A

    Bottom Bracket

    N/A, N/A

    Headset

    ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40

    Stem

    FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm

    Handlebar

    FSA Omega Compact Handlebars, 6061 Aluminium, 74mm Reach, 118mm Drop, 4 Degree Flare, S:400mm M:400mm L:420mm XL:440mm

    Saddle

    Vitus, Steel Rail

    Seatpost

    FSA Gossamer, Aluminium, 27.2mm x 350mm

    Type: Rigid

    Grips

    Vitus, EVA Cork

    Groupset
    Rear Derailleur

    Shimano Tiagra R4700, RD-R4700, 10 Speed

    Front Derailleur

    Shimano Tiagra R4700, FD-R4700, Braze-On, 2 x 10 Speed

    Crank

    FSA CK 746, 50/34T, 2 x 10 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm

    Shifters

    Shimano Tiagra R4700, ST-4720-R, 10 Speed

    Cassette

    Sunrace CS-RX0, 10 Speed, 11-32T

    Chain

    KMC e10T, 10 Speed, E-Bike Specific

    Brakes

    Shimano Tiagra R4700 Hydraulic Disc, ST-4720-L & BR-4770-R, Flat Mount

    Type: Shimano Tiagra Hydraulic Disc

    Wheels
    Rims

    Front: Prime Stagiaire Disc Alloy, 650b, Tubeless Ready, Rear: Prime Stagiaire Disc Alloy, 650b, Tubeless Ready

    Front Hub

    Prime, 12x100mm, Centre Lock

    Rear Hub

    Prime, 142x12mm, Centre Lock, HG Freehub

    Tires

    Front: Michelin Power Road TLR, 700c x 25c, Tubeless Ready, Rear: Michelin Power Road TLR, 700c x 25c, Tubeless Ready

    Disc Rotors

    Shimano SM-RT70, Front: 160mm, Rear: 160mm

    Electric Components
    Motor

    Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah

    Battery

    Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah

    Display

    N/A, N/A
