MSRP | ($5,235) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Gravel, E-Bike | |
Weight | 41.9 lbs | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 700c | |
Clearance | 40c | |
| Shimano GRX 800 Hydraulic Disc | ||
| Bosch 250W 55Nm mid-drive | ||
| Bosch 400Wh | ||
| GRX 800 | ||
Drivetrain | 1 × 12 | |
Brand Site | ||

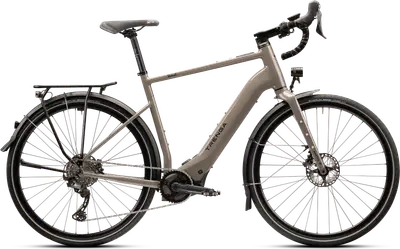

Summary | The Trenga E-GLS 9.0 is an aluminum frame gravel e-bike with high-end components and shimano grx 800 hydraulic disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminium 6061 TFW, Motor mount: Bosch SX, Cable routing: integrated, Axle mount: thru axle 12x142 mm, Brake: Flatmount Disc 160, Tire clearance: 40 mm with plates / 50 mm without, Mudguard and luggage carrier eyelets BB Standard: Bosch, Press Fit Tire Clearance: 40c | |
|---|---|---|
Fork | Aluminium TDE 4.5, axle mount: thru axle 12x100 mm, steerer tube: 1 1/8" to 1.5", disc brake mount: flat mount, lowrider eyelets, max. tire width: 45 mm with mudguards/50 mm without | |
Bottom Bracket | Bosch, press-fit | |
Stem | FSA NS SMR integrated, length: depending on frame height, fork clamp Ø: 28.6 mm, handlebar clamp Ø: 31.8 mm, angle: - 6°, internally routed shift cables and brake lines | |
Handlebar | TRENGA, width: 38-44 cm, depending on frame height, handlebar clamp Ø: 31.8 mm, reach: 80 mm, drop: 127 mm | |
Saddle | Selle Italia ST-5 Flow, combines comfort with sporty design, FLOW opening relieves pressure on the perineal area, gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark | |
Seatpost | TRENGA aluminum rigid, diameter: 31.6 mm, length: 400 mm, clamping: 2-way, offset: 10 mm Type: Rigid | |
Pedals | TRENGA HPL Platform, non-slip tread for more safety, aluminum pedal body, reflectors |
Rear Derailleur | Shimano GRX RD-RX820, Shadow RD Plus design for optimal chain guidance, smooth, precise and quiet shifting, adjustable chain stabilizer for different terrain, largest pinion max. 42 teeth | |
|---|---|---|
Crank | FSA CK-762, crank length: 170 mm, material: forged 6061/T6 aluminum, finish: black anodized, Q-factor: 177 mm | |
Shifters | Shimano GRX ST-RX820, Dual Control with Servo Wave brake function, Gravel-optimized ergonomics for more control, Especially for handlebars with flare, Non-slip surfaces, Grip width and pressure point settings | |
Cassette | Shimano CS-HG710-12, 12-speed HYPERGLIDE, gear ratio: 11-12-13-14-15-17-19-21-24-28-32-36 | |
Chain | Shimano CN-M7100, 12-speed HYPERGLIDE+, SIL-TEC coating for longer durability | |
Brakes | Shimano GRX 820, hydraulic disc brake, powerful and finely dosed thanks to servo wave, grip width and pressure point adjustment, brake lever front: BL-RX820, brake lever rear: ST-RX820 Dual-Control, brake calipers: BR-RX820 2-piston, brake pads: K05S-RX Type: Shimano GRX 800 Hydraulic Disc |
Rims | Ryde Zac 25, versatile and durable all-round rim, 32 holes, tubeless ready, ETRTO: 25-622 | |
|---|---|---|
Spokes | Sapim Race, Material: Stainless steel, Diameter: 2.0 / 1.8 mm, Color: Black | |
Tires | Schwalbe Marathon Race, Size: 40-622, Light and sporty, SpeedGrip Compound for best driving characteristics, Good puncture protection through RaceGuard, Reflective strips, For special e-bike requirements |
Motor | Bosch Performance Line SX, lightweight, compact, and minimalist, max. torque: 55 Nm, rated continuous power: 250 W, max. power at 70 rpm: 400 W, support increases with cadence - for sporty eGravel and eUrban rides | |
|---|---|---|
Battery | Bosch Compacttube 400, lightweight battery for sporty e-bikes, completely integrated into the frame, voltage: 36V, capacity 11.1 Ah, energy content: approx. 400 Wh, weight: approx. 2 kg | |
Remote | Bosch System Controller, Compact control unit for sporty e-bikes, Protected in the top tube, Optimally readable LED display for charging status, Effective two-button control, Interface for software updates | |
Display | Bosch Kiox 300, 2-inch color display, navigation function, display configurable via Flow app, lock function - display as a key | |
Charger | Bosch 4A Charger, charging current (max.): 4 A, battery charging voltage: 36 V, size: 200 x 90 x 53 mm, weight: including cable approx. 700 grams, charging time: 4.5 h for PowerTube 500, approx. 4.9 h for PowerTube 625, approx. 3.5 h for PowerPack 400 |
Lights | Busch & Müller Toplight Dart Brex, LED rear light for e-bikes, brake and emergency brake light function, integrated Z-shaped large-area reflector | |
|---|---|---|
Fenders | SKS Bluemels matte black, aluminum/plastic sandwich construction, robust, rigid, and corrosion-resistant, ASR safety system, width: 53 mm, max. tire width: 47 mm | |
Racks | Racktime Light-It 2.0, SNAPIT 2.0 - compatible, lightweight, slim, elegant, load capacity: 25 kg, spring clamp easily retrofittable, material: aluminum | |
Stand | Hebie rear stand, material: coated steel, wide base for secure support, load capacity up to 25 kg, continuous length adjustment without tools, dropout direct mounting KSA 18 | |
Bell | Bell Mounty Toby Alu 31.8 mm, Material: Aluminum, Especially for racing handlebar attachment, Light and sonorous |
