    FourRay 4.02022 R RAYMON
    Recommended
    MSRP
    ($906)
    Where to Buy
    —
    $1

    At

    Category
    		Mountain Youth
    Weight
    		24.5 lbs
    3.4
    Frame
    		Aluminum
    		RST AERIAL
    Wheels
    		Aluminum
    Wheel Size
    		24″
    		Tektro Hydraulic Disc
    		X4
    Drivetrain
    		1 × 8
    Suspension
    		Hardtail
    Front Travel
    		60mm
    Brand Site

    r-raymon-bikes.com

    Summary

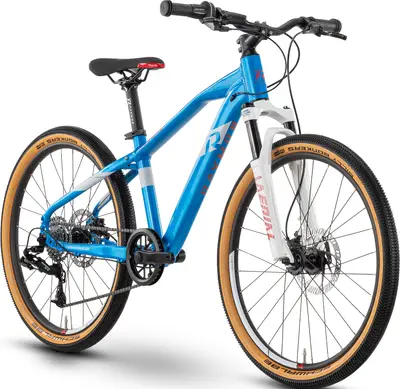

    		The R RAYMON FourRay 4.0 is a 24″ aluminum frame mountain youth bike with mid-range components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Handling
    nimblestable
    FourRay 4.0
    Other Mountain Youth bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    21 mph

    FourRay 4.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    FourRay 4.02022 R RAYMON
    Frame

    24", Alloy 6061

    BB Standard: BSA, 68mm, Threaded

    Fork

    RST Aerial 24, Air, 60 mm

    Travel: 60mm

    Spring Type: Air

    Bottom Bracket

    Feimin, BSA68, JIS, 122.5 mm

    Headset

    R Raymon ZS44/ZS44

    Stem

    R Raymon 25.4, 20 °, Ahead

    Handlebar

    R Raymon Riser 25.4 mm, 580 mm, Sweep: 8 °, Rise: 30 mm

    Saddle

    R Raymon Kids

    Seatpost

    R Raymon, 31.6 mm, 300 mm, Patent

    Type: Rigid

    Pedals

    R Raymon, plastic

    Grips

    R Raymon Ergo, Lock-on grips

    Groupset
    Rear Derailleur

    SRAM X4, 8-S

    Crank

    , 32 T

    Shifters

    SRAM Twist Shifter

    Cassette

    SRAM PG-830, 11-32 T

    Chain

    KMC Z8

    Brakes

    Front: Tektro HD-M276, 2-piston, Hydraulic disc brake, Rear: Tektro HD-M276, 2-piston, Hydraulic disc brake

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Front: Rim: Ryde Disc19 / Hub: R Raymon DB600F, 6-hole, 100 mm, Quick-release axle, Rear: Rim: Ryde Disc19 / Hub: R Raymon DB600R, 6-hole, 9x135 mm, Quick-release axle

    Tires

    Schwalbe Billy Bonkers, Performance, 50-507, 24, 2.0

    Disc Rotors

    Tektro TR24, 160 mm, 6-hole
